Kyocera

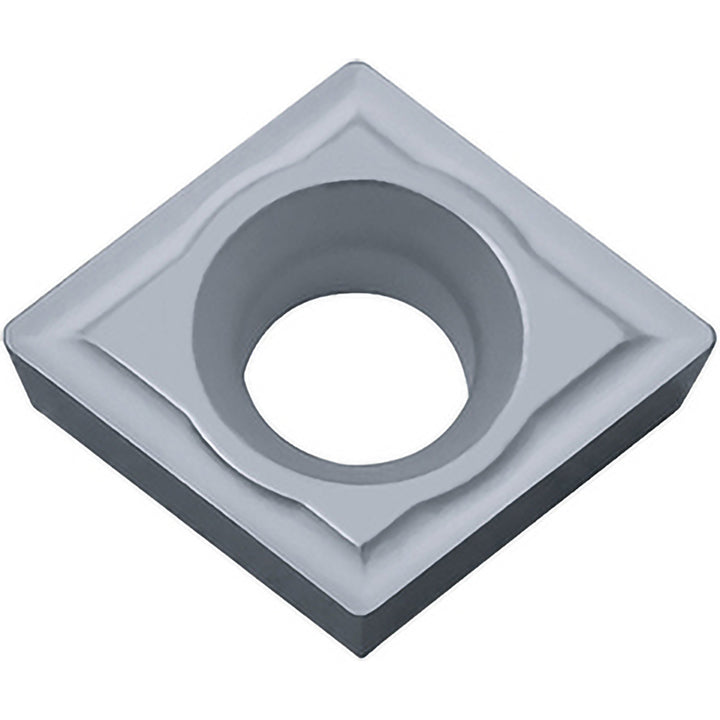

CPMH080204 Cermet Insert, Grade TN60, TiCN - Kyocera TSJ00350
MFR# TSJ00350ISO/ANSI# CPMH25151TN60Series ISOI
$8.21List $11.61
Save 29%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/16
ShapeDiamond 80
GradeTN60
MaterialCermet
CoatingTiCN
Description
The Kyocera TSJ00350 is a CPMH080204 cermet indexable insert, grade TN60, TiCN coated. Suited for steel.
Specifications
Clearance codeP
Coating finishTiCN
Coating processUncoated
Corner radius in1/64
Full radiusNo
Hole diameter0.1378
Included angle80degree
Industry standard numberCPMH25151TN60
Inscribed circle in5/16
Insert handNeutral
Insert holding methodScrew
Insert length in5/16
Insert materialCermet
Insert shapeDiamond 80
Insert size code25151
Insert styleCPMH
Insert thickness in3/32
Iso codeCPMH080204
Length range0.3000 - 0.4000
Manufacturers catalog numberTSJ00350
Manufacturer gradeTN60
Material gradeP01; P10; P20
Maximum depth of cut0.1042
Multi use applicationBoring; Internal Facing
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle11
StandardsANSI; ISO
Tolerance codeM
Width in5/16in
Wiper edgeNo
