Kyocera

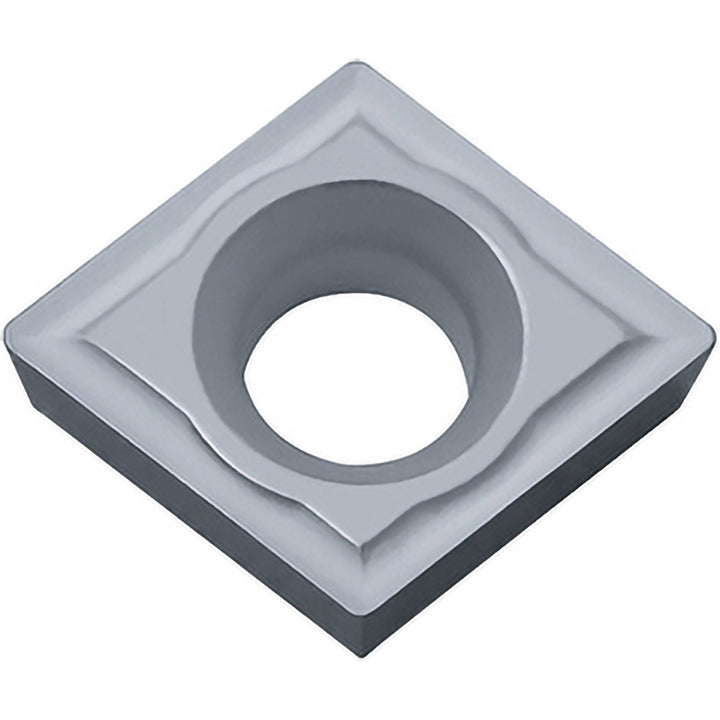

CPMH090304 Cermet Insert, Grade TN60, TiCN - Kyocera TSJ00370
MFR# TSJ00370ISO/ANSI# CPMH321TN60Series ISOI
$8.07List $11.61
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradeTN60
MaterialCermet
CoatingTiCN
Description
The Kyocera TSJ00370 is a CPMH090304 cermet indexable insert, grade TN60, TiCN coated. Suited for steel.
Specifications
Clearance codeP
Coating finishTiCN
Coating processUncoated
Corner radius in1/64
Full radiusNo
Hole diameter0.1772
Included angle80degree
Industry standard numberCPMH321TN60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length in3/8
Insert materialCermet
Insert shapeDiamond 80
Insert size code321
Insert styleCPMH
Insert thickness in1/8
Iso codeCPMH090304
Length range0.3000 - 0.4000
Manufacturers catalog numberTSJ00370
Manufacturer gradeTN60
Material gradeP01; P10; P20
Maximum depth of cut0.1250
Multi use applicationBoring; Internal Facing
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle11
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
