Kyocera

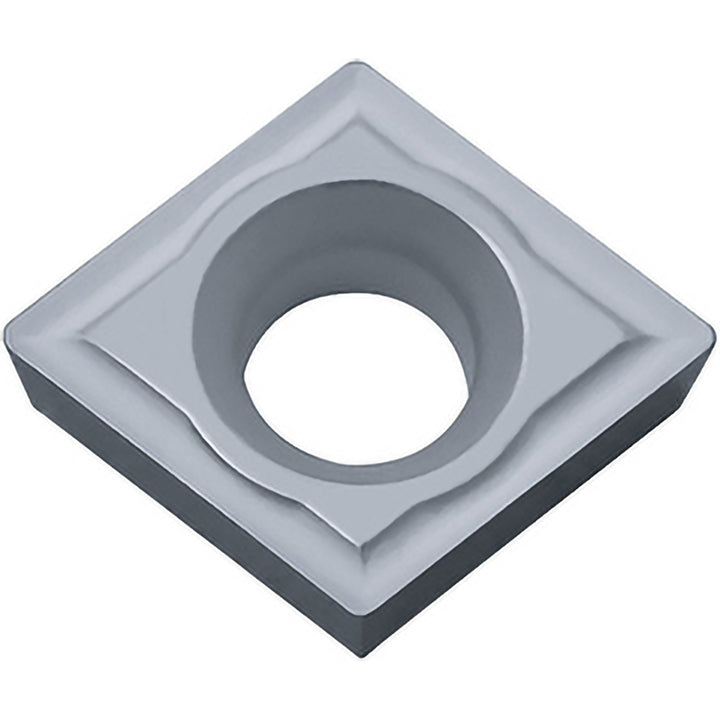

CPMH090308 Cermet Insert, Grade TN60, TiCN - Kyocera TSJ00380
MFR# TSJ00380ISO/ANSI# CPMH322TN60Series ISOI
$8.21List $11.61
Save 29%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradeTN60
MaterialCermet
CoatingTiCN
Description
The Kyocera TSJ00380 is a CPMH090308 cermet indexable insert, grade TN60, TiCN coated. Suited for steel.
Specifications
Clearance codeP
Coating finishTiCN
Coating processUncoated
Corner radius in1/32
Full radiusNo
Hole diameter0.1772
Included angle80degree
Industry standard numberCPMH322TN60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length in3/8
Insert materialCermet
Insert shapeDiamond 80
Insert size code322
Insert styleCPMH
Insert thickness in1/8
Iso codeCPMH090308
Length range0.3000 - 0.4000
Manufacturers catalog numberTSJ00380
Manufacturer gradeTN60
Material gradeP01; P10; P20
Maximum depth of cut0.1250
Multi use applicationBoring; Internal Facing
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle11
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
