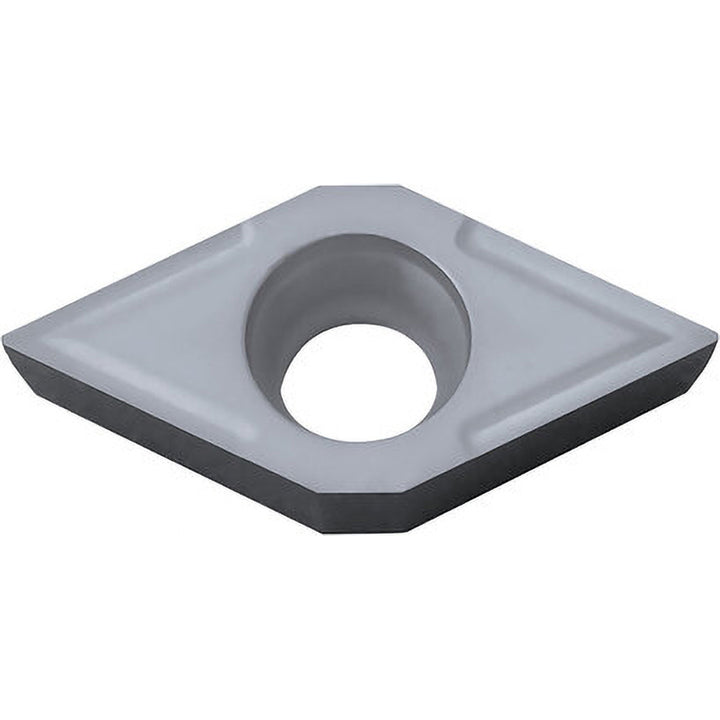

DCGT070201 Cermet Insert, Grade TN60, TiCN - Kyocera TSJ00500

Kyocera

DCGT070201 Cermet Insert, Grade TN60, TiCN - Kyocera TSJ00500

MFR# TSJ00500ISO/ANSI# DCGT21502TN60Series ISOI

$18.33List $26.37 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeDiamond 55
GradeTN60
MaterialCermet
CoatingTiCN

Description

The Kyocera TSJ00500 is a DCGT070201 cermet indexable insert, grade TN60, TiCN coated. Suited for steel.

Specifications

Clearance codeC
Coating finishTiCN
Coating processUncoated
Corner radius in1/256
Full radiusNo
Hole diameter0.1102
Included angle55degree
Industry standard numberDCGT21502TN60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.6140
Insert materialCermet
Insert shapeDiamond 55
Insert size code21502
Insert styleDCGT
Insert thickness in3/32
Iso codeDCGT070201
Length range0.6000 - 0.6500
Manufacturers catalog numberTSJ00500
Manufacturer gradeTN60
Material gradeP01; P10; P20
Maximum depth of cut0.2047
Multi use applicationBack Boring; Copying; External Turning; Sub-Spindle
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle7
StandardsANSI; ISO
Tolerance codeG
Width in1/4in
Wiper edgeNo
