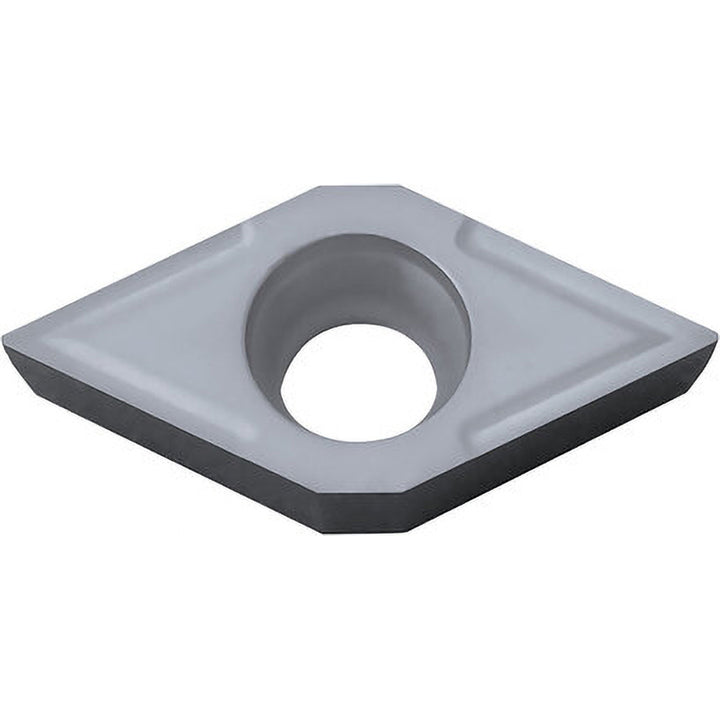

DCGT11T302 Cermet Insert, Grade TN60, TiCN - Kyocera TSJ00660

Kyocera

DCGT11T302 Cermet Insert, Grade TN60, TiCN - Kyocera TSJ00660

MFR# TSJ00660ISO/ANSI# DCGT32505TN60Series ISOI

$21.23List $30.56 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradeTN60
MaterialCermet
CoatingTiCN

Description

The Kyocera TSJ00660 is a DCGT11T302 cermet indexable insert, grade TN60, TiCN coated. Suited for steel.

Specifications

Clearance codeC
Coating finishTiCN
Coating processUncoated
Corner radius in1/128
Full radiusNo
Hole diameter0.1732
Included angle55degree
Industry standard numberDCGT32505TN60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9140
Insert materialCermet
Insert shapeDiamond 55
Insert size code32505
Insert styleDCGT
Insert thickness in5/32
Iso codeDCGT11T302
Length range0.7000 - 10.0000
Manufacturers catalog numberTSJ00660
Manufacturer gradeTN60
Material gradeP01; P10; P20
Maximum depth of cut0.3047
Multi use applicationBack Boring; Copying; External Turning; Sub-Spindle
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle7
StandardsANSI; ISO
Tolerance codeG
Width in3/8in
Wiper edgeNo
