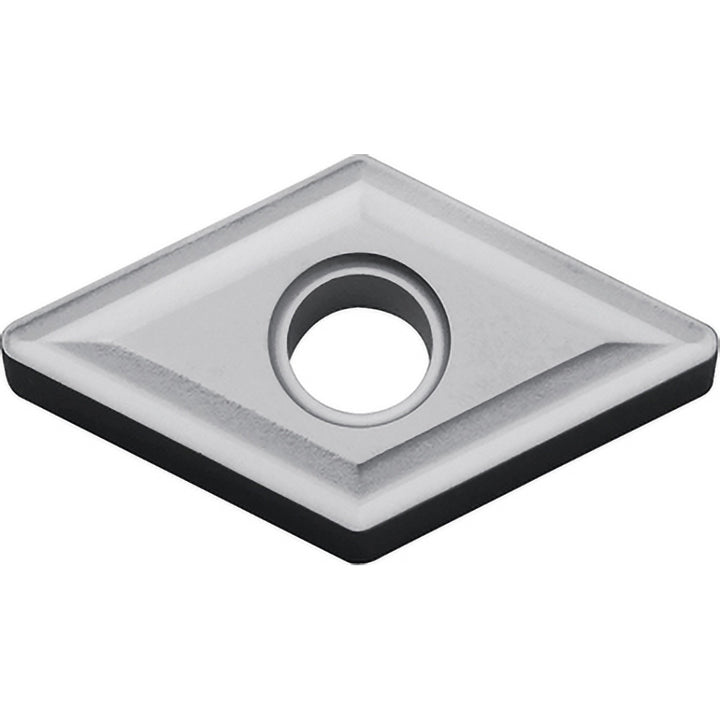

DNMG150408 Cermet Insert, Grade TN60, TiCN - Kyocera TSJ00820

Kyocera

DNMG150408 Cermet Insert, Grade TN60, TiCN - Kyocera TSJ00820

MFR# TSJ00820ISO/ANSI# DNMG432TN60Series ISOI

$17.72List $25.49 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeTN60
MaterialCermet
CoatingTiCN

Description

The Kyocera TSJ00820 is a DNMG150408 cermet indexable insert, grade TN60, TiCN coated. Suited for steel.

Specifications

Clearance codeN
Coating finishTiCN
Coating processUncoated
Corner radius in1/32
Full radiusNo
Hole diameter0.2032
Included angle55degree
Industry standard numberDNMG432TN60
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.1820
Insert materialCermet
Insert shapeDiamond 55
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150408
Length range0.7000 - 10.0000
Manufacturers catalog numberTSJ00820
Manufacturer gradeTN60
Material gradeP01; P10; P20
Maximum depth of cut0.3940
Multi use applicationBoring; Copying; External Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
