Kyocera

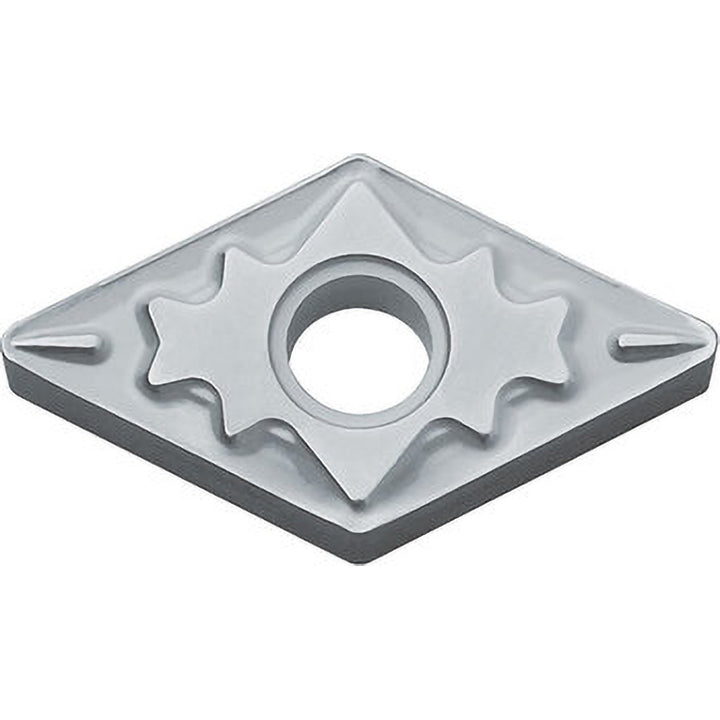

DNMG150408HQ Cermet Insert, Grade TN60, TiCN - Kyocera TSJ00835
MFR# TSJ00835ISO/ANSI# DNMG432HQTN60Series ISOI
$20.75List $29.85
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeTN60
MaterialCermet
CoatingTiCN
Description
The Kyocera TSJ00835 is a DNMG150408HQ cermet indexable insert, grade TN60, TiCN coated. Suited for steel.
Specifications
Chip breakerHQ
Clearance codeN
Coating finishTiCN
Coating processUncoated
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2032
Included angle55degree
Industry standard numberDNMG432HQTN60
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.1820
Insert materialCermet
Insert shapeDiamond 55
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150408HQ
Length range0.7000 - 10.0000
Manufacturers catalog numberTSJ00835
Manufacturer gradeTN60
Material gradeP01; P10; P20
Maximum depth of cut0.3940
Multi use applicationBoring; Copying; External Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Rake angle-15
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
