Kyocera

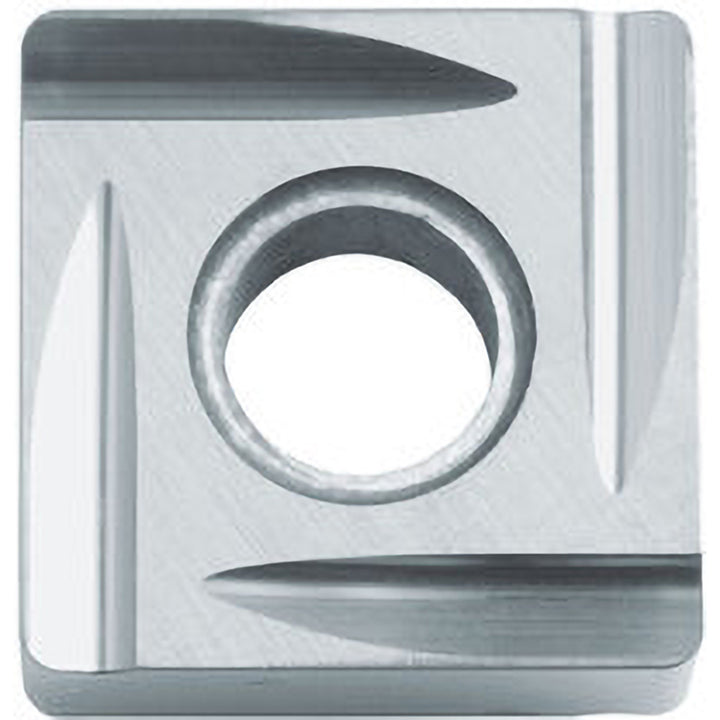

SNGG120404L-C Cermet Insert, Grade TN60, TiCN - Kyocera TSJ01086
MFR# TSJ01086ISO/ANSI# SNGG431LCTN60Series ISOI
$24.14List $34.13
Save 29%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeTN60
MaterialCermet
CoatingTiCN
Description
The Kyocera TSJ01086 is a SNGG120404L-C cermet indexable insert, grade TN60, TiCN coated. Suited for steel.
Specifications
Chip breakerC
Clearance codeN
Coating finishTiCN
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2032
Included angle90degree
Industry standard numberSNGG431LCTN60
Inscribed circle in1/2
Insert handLeft Hand
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCermet
Insert shapeSquare
Insert size code431
Insert styleSNGG
Insert thickness in3/16
Iso codeSNGG120404L-C
Length range0.5000 - 0.6000
Manufacturers catalog numberTSJ01086
Manufacturer gradeTN60
Material gradeP01; P10; P20
Maximum depth of cut0.1667
Multi use applicationBoring; Chamfering; External Turning; Facing
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel
RakeNegative
Rake angle-14
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeG
Width in1/2in
Wiper edgeNo
