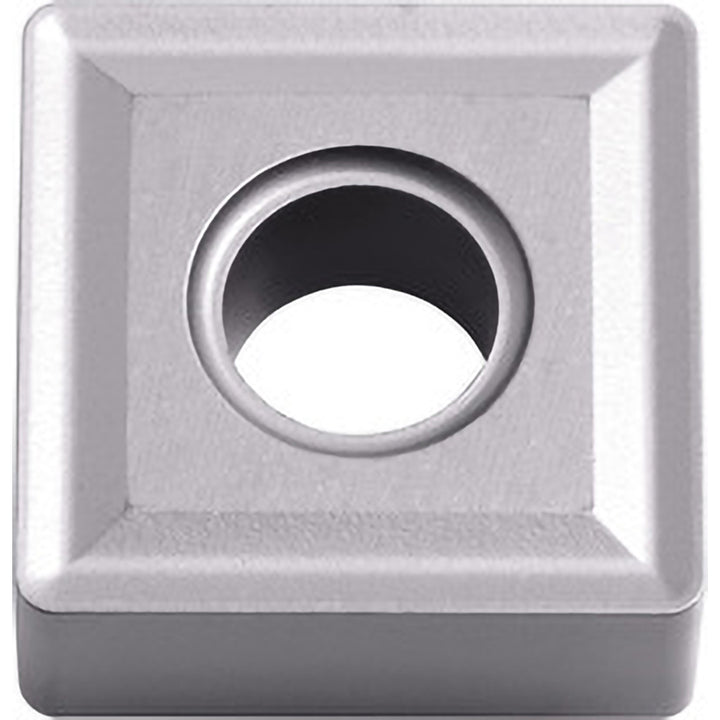

SNMG120412 Cermet Insert, Grade TN60, TiCN - Kyocera TSJ01210

Kyocera

SNMG120412 Cermet Insert, Grade TN60, TiCN - Kyocera TSJ01210

MFR# TSJ01210ISO/ANSI# SNMG433TN60Series ISOI

$10.32List $14.84 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeTN60
MaterialCermet
CoatingTiCN

Description

The Kyocera TSJ01210 is a SNMG120412 cermet indexable insert, grade TN60, TiCN coated. Suited for steel.

Specifications

Clearance codeN
Coating finishTiCN
Coating processUncoated
Corner radius in3/64
Full radiusNo
Hole diameter0.2032
Included angle90degree
Industry standard numberSNMG433TN60
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCermet
Insert shapeSquare
Insert size code433
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG120412
Length range0.5000 - 0.6000
Manufacturers catalog numberTSJ01210
Manufacturer gradeTN60
Material gradeP01; P10; P20
Maximum depth of cut0.1667
Multi use applicationBoring; Chamfering; External Turning; Facing
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
