Kyocera

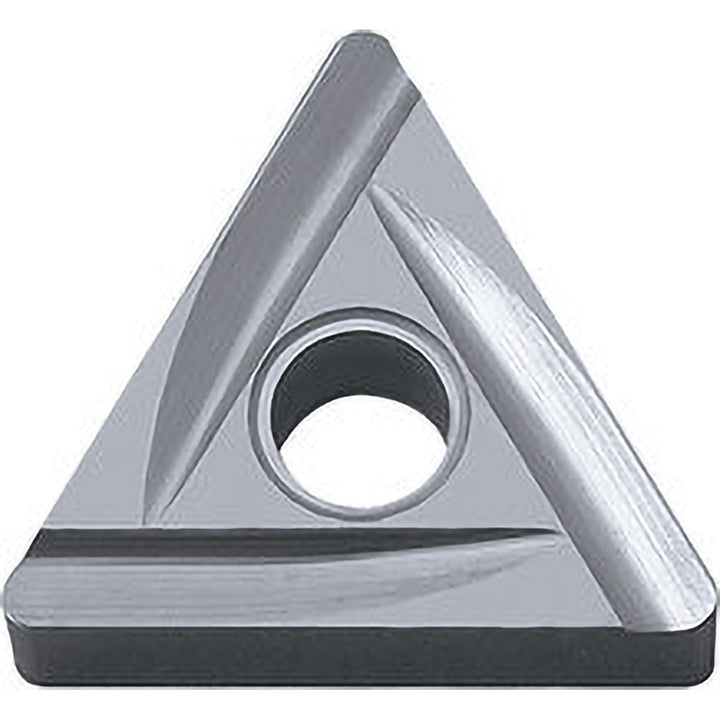

TNGG160408R-C Cermet Insert, Grade TN60, TiCN - Kyocera TSJ01930
MFR# TSJ01930ISO/ANSI# TNGG332RCTN60Series ISOI
$15.65List $22.52
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeTN60
MaterialCermet
CoatingTiCN
Description
The Kyocera TSJ01930 is a TNGG160408R-C cermet indexable insert, grade TN60, TiCN coated. Suited for steel.
Specifications
Chip breakerC
Clearance codeN
Coating finishTiCN
Coating processUncoated
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1500
Included angle60degree
Industry standard numberTNGG332RCTN60
Inscribed circle in3/8
Insert handRight Hand
Insert holding methodClamp; Pin
Insert length0.6501
Insert materialCermet
Insert shapeTriangle
Insert size code332
Insert styleTNGG
Insert thickness in3/16
Iso codeTNGG160408R-C
Length range0.6500 - 0.7000
Manufacturers catalog numberTSJ01930
Manufacturer gradeTN60
Material gradeP01; P10; P20
Maximum depth of cut0.2167
Multi use applicationBoring; Chamfering; Copying; External Turning; Facing; Up Facing
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Rake angle-14
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeG
Width0.6501in
Wiper edgeNo
