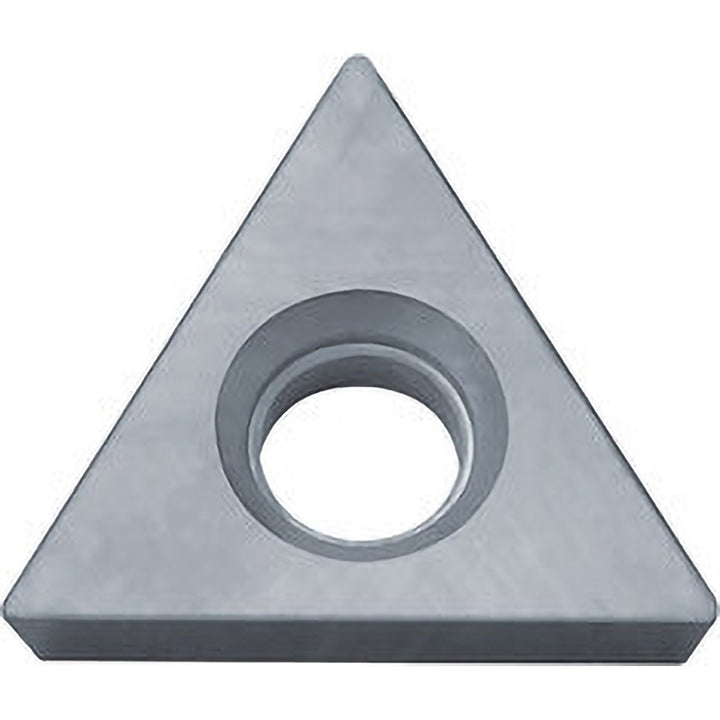

TPGB110202 Cermet Insert, Grade TN60, TiCN - Kyocera TSJ02270

Kyocera

TPGB110202 Cermet Insert, Grade TN60, TiCN - Kyocera TSJ02270

MFR# TSJ02270ISO/ANSI# TPGB21505TN60Series ISOI

$10.83List $15.57 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeTriangle
GradeTN60
MaterialCermet
CoatingTiCN

Description

The Kyocera TSJ02270 is a TPGB110202 cermet indexable insert, grade TN60, TiCN coated. Suited for steel.

Specifications

Clearance codeP
Coating finishTiCN
Coating processUncoated
Corner radius in1/128
Full radiusNo
Hole diameter0.1378
Included angle60degree
Industry standard numberTPGB21505TN60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4334
Insert materialCermet
Insert shapeTriangle
Insert size code21505
Insert styleTPGB
Insert thickness in3/32
Iso codeTPGB110202
Length range0.4000 - 0.5000
Manufacturers catalog numberTSJ02270
Manufacturer gradeTN60
Material gradeP01; P10; P20
Maximum depth of cut0.1445
Multi use applicationBack Boring; Boring; Copying; External Turning; Internal Facing
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel
RakePositive
Relief angle11
StandardsANSI; ISO
Tolerance codeG
Width0.4334in
Wiper edgeNo
