Kyocera

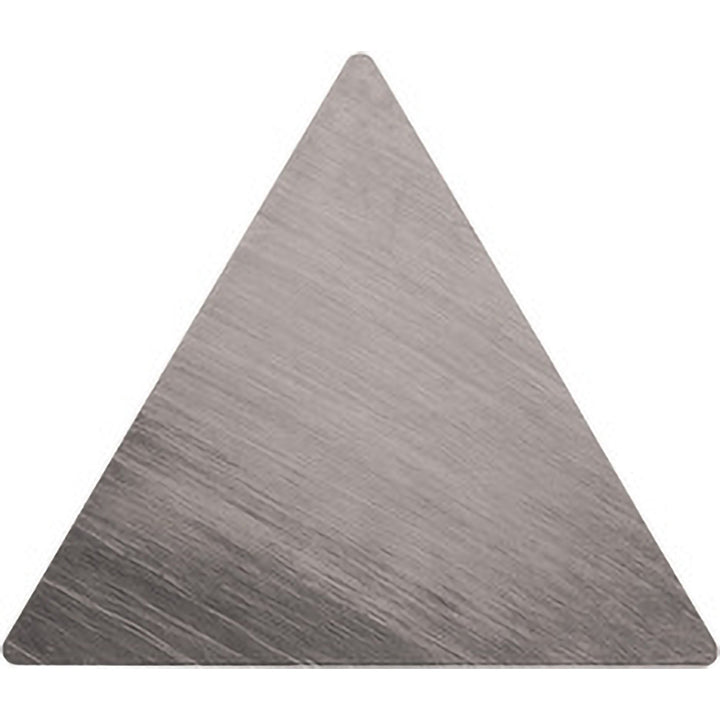

TPGN160308 Cermet Insert, Grade TN60, TiCN - Kyocera TSJ02690
MFR# TSJ02690ISO/ANSI# TPG322TN60Series ISOI
$13.40List $18.94
Save 29%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeTN60
MaterialCermet
CoatingTiCN
Description
The Kyocera TSJ02690 is a TPGN160308 cermet indexable insert, grade TN60, TiCN coated. Suited for steel.
Specifications
Clearance codeP
Coating finishTiCN
Coating processUncoated
Corner radius in1/32
Full radiusNo
Included angle60degree
Industry standard numberTPG322TN60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6501
Insert materialCermet
Insert shapeTriangle
Insert size code322
Insert styleTPG
Insert thickness in1/8
Iso codeTPGN160308
Length range0.6500 - 0.7000
Manufacturers catalog numberTSJ02690
Manufacturer gradeTN60
Material gradeP01; P10; P20
Maximum depth of cut0.2167
Multi use applicationBoring; Chamfering; External Turning; Facing
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel
RakePositive
Relief angle11
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeG
Width0.6501in
Wiper edgeNo
