Kyocera

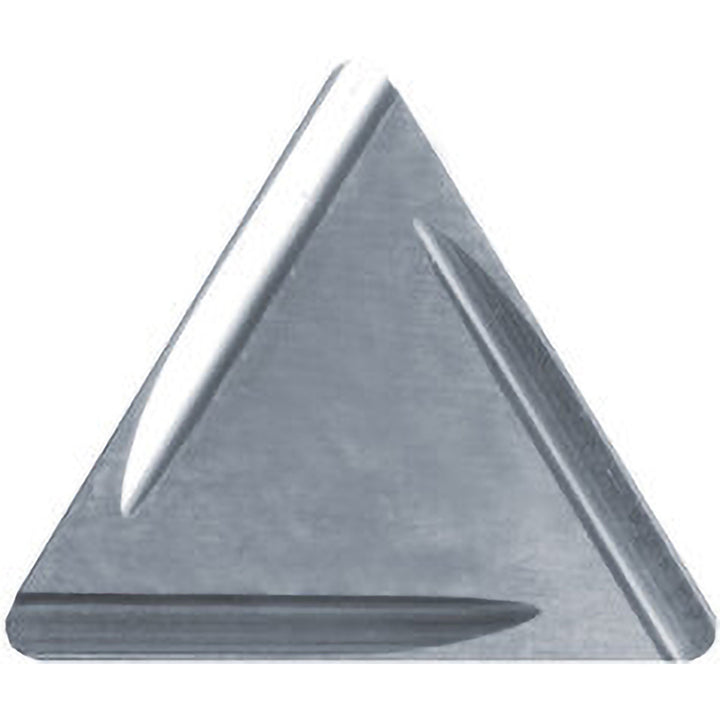

TPGR160308R-B Cermet Insert, Grade TN60, TiCN - Kyocera TSJ02860
MFR# TSJ02860ISO/ANSI# TPGR322RBTN60Series ISOI
$19.11List $27.50
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeTN60
MaterialCermet
CoatingTiCN
Description
The Kyocera TSJ02860 is a TPGR160308R-B cermet indexable insert, grade TN60, TiCN coated. Suited for steel.
Specifications
Chip breakerB
Clearance codeP
Coating finishTiCN
Coating processUncoated
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Included angle60degree
Industry standard numberTPGR322RBTN60
Inscribed circle in3/8
Insert handRight Hand
Insert holding methodClamp
Insert length0.6501
Insert materialCermet
Insert shapeTriangle
Insert size code322
Insert styleTPGR
Insert thickness in1/8
Iso codeTPGR160308R-B
Length range0.6500 - 0.7000
Manufacturers catalog numberTSJ02860
Manufacturer gradeTN60
Material gradeP01; P10; P20
Maximum depth of cut0.0500
Multi use applicationBack Boring; Boring; Copying; External Turning; Internal Facing
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel
RakePositive
Rake angle14
Relief angle11
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeG
Width0.6501in
Wiper edgeNo
