Kyocera

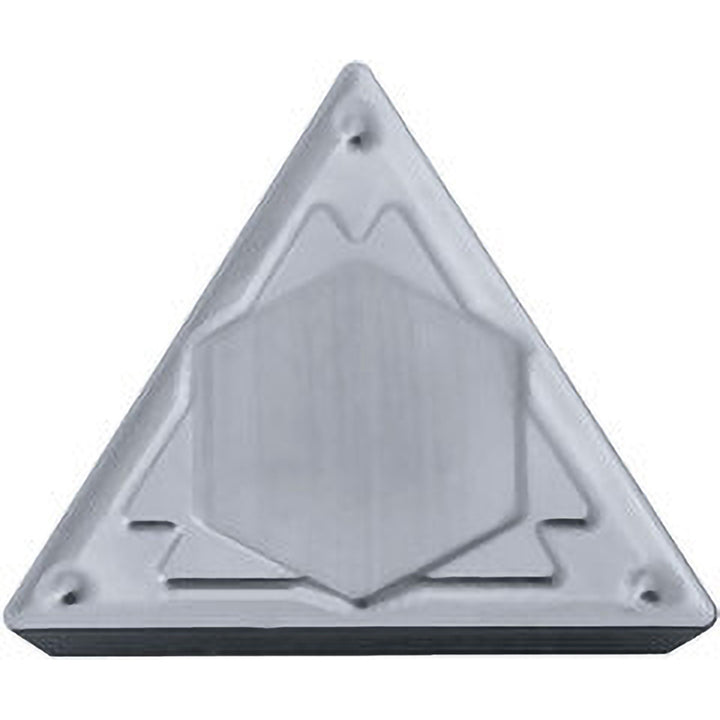

TPMR110304HQ Cermet Insert, Grade TN60, TiCN - Kyocera TSJ02895
MFR# TSJ02895ISO/ANSI# TPMR221HQTN60Series ISOI
$7.16List $10.31
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeTN60
MaterialCermet
CoatingTiCN
Description
The Kyocera TSJ02895 is a TPMR110304HQ cermet indexable insert, grade TN60, TiCN coated. Suited for steel.
Specifications
Chip breakerHQ
Clearance codeP
Coating finishTiCN
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Included angle60degree
Industry standard numberTPMR221HQTN60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp
Insert length0.4334
Insert materialCermet
Insert shapeTriangle
Insert size code221
Insert styleTPMR
Insert thickness in1/8
Iso codeTPMR110304HQ
Length range0.4000 - 0.5000
Manufacturers catalog numberTSJ02895
Manufacturer gradeTN60
Material gradeP01; P10; P20
Maximum depth of cut0.1445
Multi use applicationBack Boring; Boring; Copying; External Turning; Internal Facing
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel
RakePositive
Rake angle15
Relief angle11
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width0.4334in
Wiper edgeNo
