Kyocera
TPMR160304HQ Cermet Insert, Grade TN60, TiCN - Kyocera TSJ02935
MFR# TSJ02935ISO/ANSI# TPMR321HQTN60Series ISOI
$7.90List $11.36
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeTN60
MaterialCermet
CoatingTiCN
Description

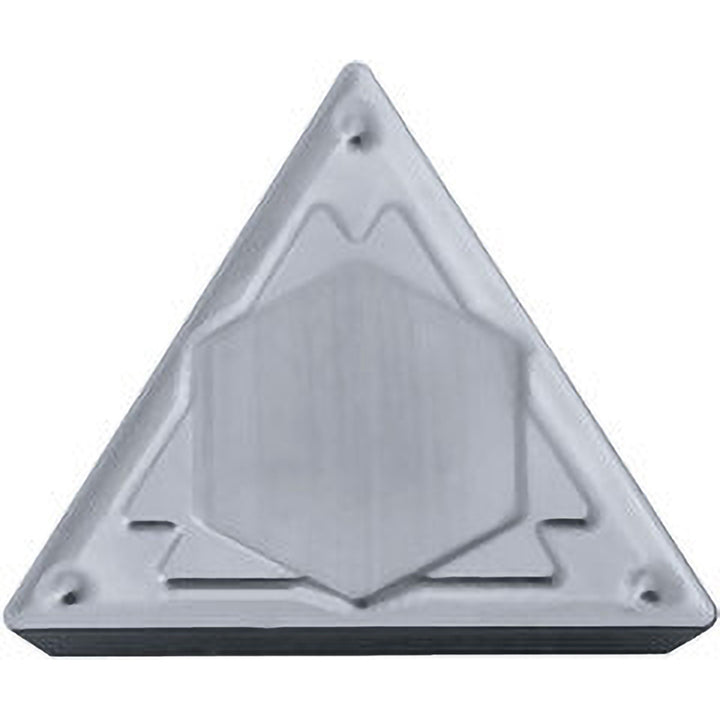

The Kyocera TSJ02935 is a TPMR160304HQ cermet indexable insert, grade TN60, TiCN coated. Suited for steel.
Specifications
Chip breakerHQ
Clearance codeP
Coating finishTiCN
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Included angle60degree
Industry standard numberTPMR321HQTN60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6501
Insert materialCermet
Insert shapeTriangle
Insert size code321
Insert styleTPMR
Insert thickness in1/8
Iso codeTPMR160304HQ
Length range0.6500 - 0.7000
Manufacturers catalog numberTSJ02935
Manufacturer gradeTN60
Material gradeP01; P10; P20
Maximum depth of cut0.2167
Multi use applicationBack Boring; Boring; Copying; External Turning; Internal Facing
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel
RakePositive
Rake angle15
Relief angle11
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width0.6501in
Wiper edgeNo
