Kyocera

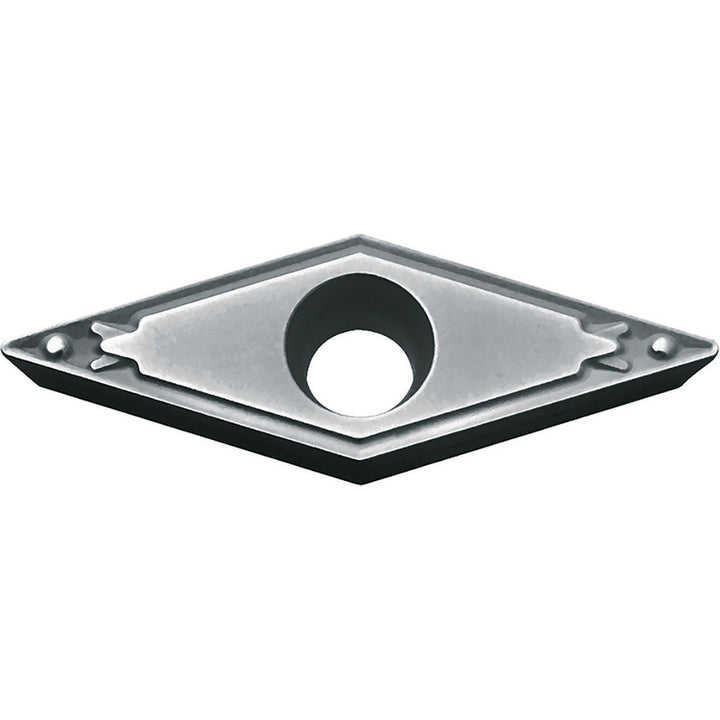

VBMT160404HQ Cermet Insert, Grade TN60, TiCN - Kyocera TSJ03120
MFR# TSJ03120ISO/ANSI# VBMT331HQTN60Series ISOI
$21.96List $31.59
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeTN60
MaterialCermet
CoatingTiCN
Description
The Kyocera TSJ03120 is a VBMT160404HQ cermet indexable insert, grade TN60, TiCN coated. Suited for steel.
Specifications
Chip breakerHQ
Clearance codeB
Coating finishTiCN
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1732
Included angle35degree
Industry standard numberVBMT331HQTN60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length1.3080
Insert materialCermet
Insert shapeDiamond 35
Insert size code331
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT160404HQ
Length range0.7000 - 10.0000
Manufacturers catalog numberTSJ03120
Manufacturer gradeTN60
Material gradeP01; P10; P20
Maximum depth of cut0.4360
Multi use applicationBack Boring; Copying; External Turning; Facing; Internal Facing; Profiling; Undercutting
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle15
Relief angle5
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
