Kyocera

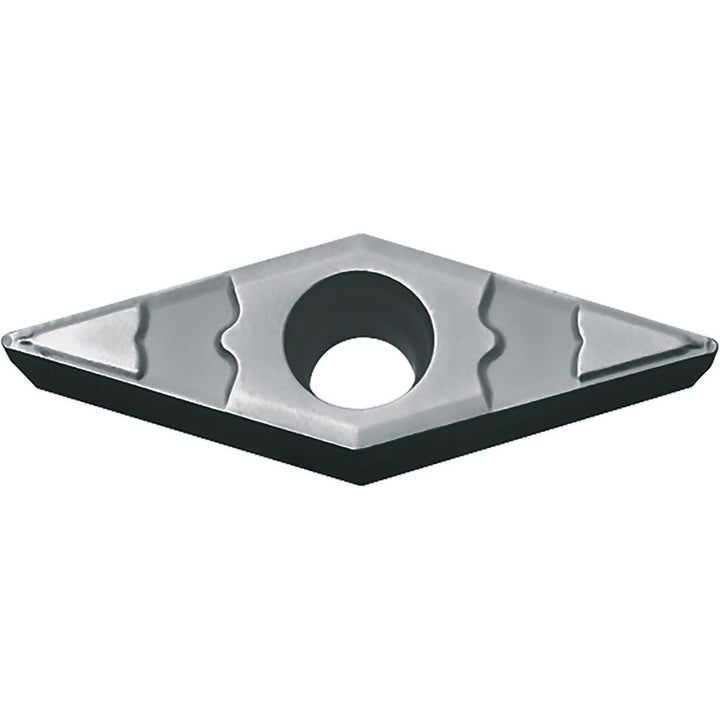

VBMT110304GP Cermet Insert, Grade TN60, TiCN - Kyocera TSJ03150
MFR# TSJ03150ISO/ANSI# VBMT221GPTN60Series ISOI
$19.00List $27.34
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 35
GradeTN60
MaterialCermet
CoatingTiCN
Description
The Kyocera TSJ03150 is a VBMT110304GP cermet indexable insert, grade TN60, TiCN coated. Suited for steel.
Specifications
Chip breakerGP
Clearance codeB
Coating finishTiCN
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1102
Included angle35degree
Industry standard numberVBMT221GPTN60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.8720
Insert materialCermet
Insert shapeDiamond 35
Insert size code221
Insert styleVBMT
Insert thickness in1/8
Iso codeVBMT110304GP
Length range0.7000 - 10.0000
Manufacturers catalog numberTSJ03150
Manufacturer gradeTN60
Material gradeP01; P10; P20
Maximum depth of cut0.2907
Multi use applicationBack Boring; Copying; External Turning; Facing; Internal Facing; Profiling; Undercutting
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle10
Relief angle5
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in1/4in
Wiper edgeNo
