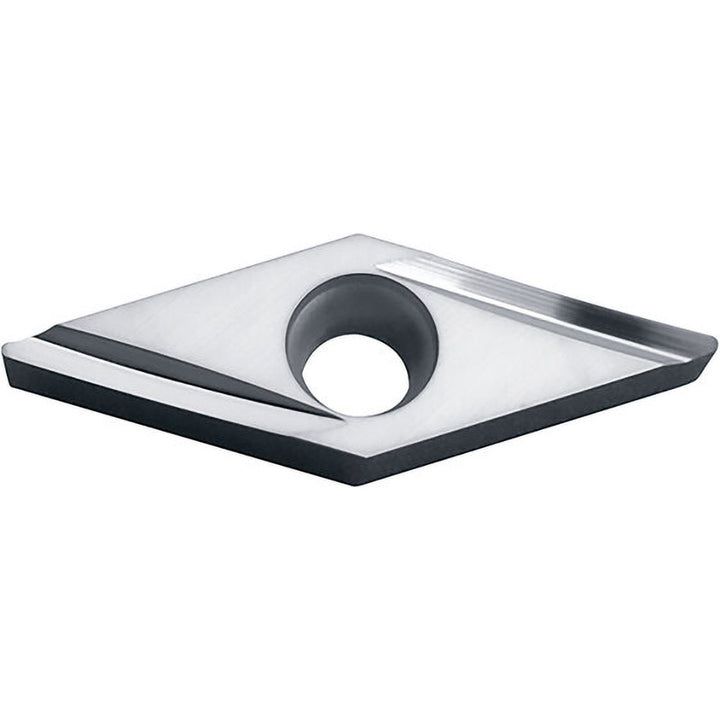

VBGT110302R-Y Cermet Insert, Grade TN60, TiCN - Kyocera TSJ03301

Kyocera

VBGT110302R-Y Cermet Insert, Grade TN60, TiCN - Kyocera TSJ03301

MFR# TSJ03301ISO/ANSI# VBGT2205RYTN60Series ISOI

$20.88List $30.05 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeDiamond 35
GradeTN60
MaterialCermet
CoatingTiCN

Description

The Kyocera TSJ03301 is a VBGT110302R-Y cermet indexable insert, grade TN60, TiCN coated. Suited for steel.

Specifications

Chip breakerY
Clearance codeB
Coating finishTiCN
Coating processUncoated
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1102
Included angle35degree
Industry standard numberVBGT2205RYTN60
Inscribed circle in1/4
Insert handRight Hand
Insert holding methodScrew
Insert length0.8720
Insert materialCermet
Insert shapeDiamond 35
Insert size code2205
Insert styleVBGT
Insert thickness in1/8
Iso codeVBGT110302R-Y
Length range0.7000 - 10.0000
Manufacturers catalog numberTSJ03301
Manufacturer gradeTN60
Material gradeP01; P10; P20
Maximum depth of cut0.2907
Multi use applicationBack Boring; Copying; External Turning; Facing; Internal Facing; Profiling; Undercutting
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle14
Relief angle5
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeG
Width in1/4in
Wiper edgeNo
