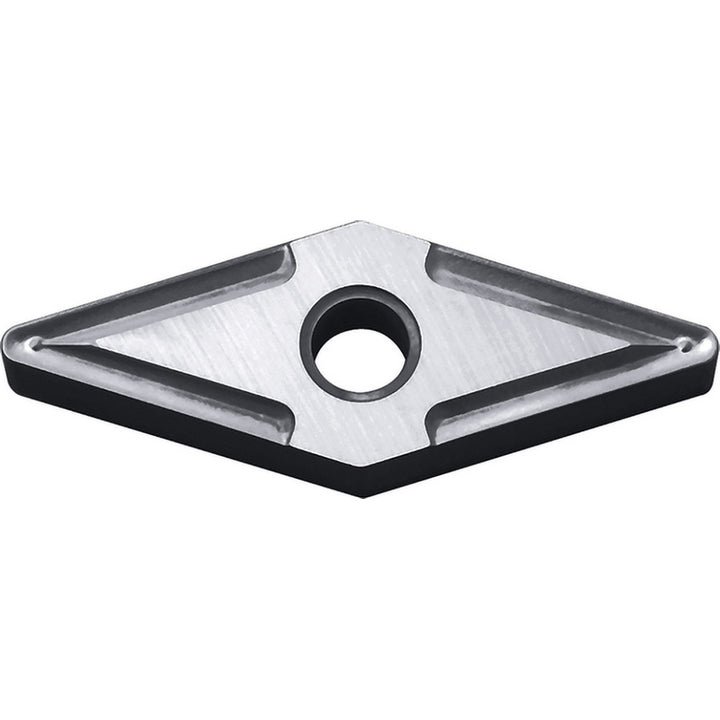

VNMG160404 Cermet Insert, Grade TN60, TiCN - Kyocera TSJ03560

Kyocera

VNMG160404 Cermet Insert, Grade TN60, TiCN - Kyocera TSJ03560

MFR# TSJ03560ISO/ANSI# VNMG331TN60Series ISOI

$19.36List $27.85 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeTN60
MaterialCermet
CoatingTiCN

Description

The Kyocera TSJ03560 is a VNMG160404 cermet indexable insert, grade TN60, TiCN coated. Suited for steel.

Specifications

Clearance codeN
Coating finishTiCN
Coating processUncoated
Corner radius in1/64
Full radiusNo
Hole diameter0.1500
Included angle35degree
Industry standard numberVNMG331TN60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.3080
Insert materialCermet
Insert shapeDiamond 35
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160404
Length range0.7000 - 10.0000
Manufacturers catalog numberTSJ03560
Manufacturer gradeTN60
Material gradeP01; P10; P20
Maximum depth of cut0.4360
Multi use applicationCopying; External Turning; Facing; Undercutting
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
