Kyocera

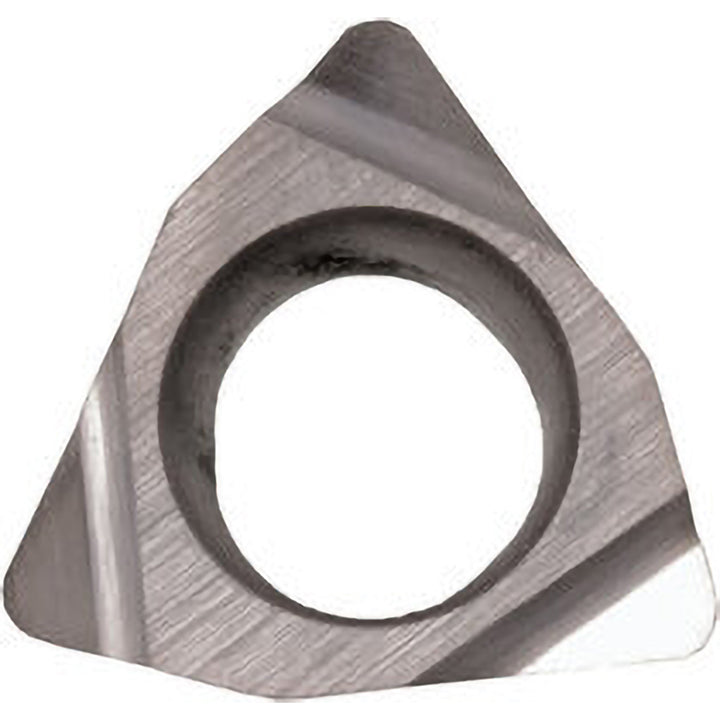

WBGT060101L-F Cermet Insert, Grade TN60, TiCN - Kyocera TSJ03695
MFR# TSJ03695ISO/ANSI# WBGT060101L-FSeries ISOI
$22.25List $32.02
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/32
ShapeTrigon
GradeTN60
MaterialCermet
CoatingTiCN
Description
The Kyocera TSJ03695 is a WBGT060101L-F cermet indexable insert, grade TN60, TiCN coated. Suited for steel.
Specifications
ChipbreakerF
Coating finishTiCN
Coating processUncoated
Corner radius in1/256
Hole diameter0.0906
Included angle80
Inscribed circle in5/32
Insert handLeft Hand
Insert holding methodScrew
Insert materialCermet
Insert shapeTrigon
Insert size code12102
Insert styleWBGT
Iso codeWBGT060101L-F
Length0.3940
Manufacturers catalog numberTSJ03695
Manufacturer gradeTN60
Material gradeP01; P10; P20
Maximum depth of cut0.1313
Number of cutting edges3
Primary workpiece materialSteel
RakePositive
Rake angle15
Relief angle5
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Width0.394
