Kyocera

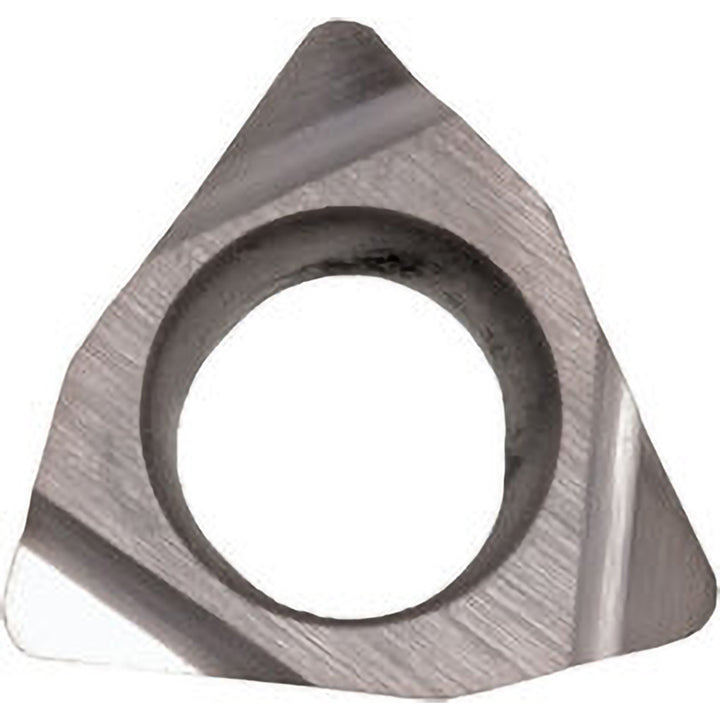

WBGT080204R-F Cermet Insert, Grade TN60, TiCN - Kyocera TSJ03770
MFR# TSJ03770ISO/ANSI# WBGT15151RFTN60Series ISOI
$22.52List $32.40
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/16
ShapeTrigon 80
GradeTN60
MaterialCermet
CoatingTiCN
Description
The Kyocera TSJ03770 is a WBGT080204R-F cermet indexable insert, grade TN60, TiCN coated. Suited for steel.
Specifications
Chip breakerF
Clearance codeB
Coating finishTiCN
Coating processUncoated
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.0906
Included angle80degree
Industry standard numberWBGT15151RFTN60
Inscribed circle in3/16
Insert handRight Hand
Insert holding methodScrew
Insert length0.3940
Insert materialCermet
Insert shapeTrigon 80
Insert size code15151
Insert styleWBGT
Insert thickness in3/32
Iso codeWBGT080204R-F
Length range0.3000 - 0.4000
Manufacturers catalog numberTSJ03770
Manufacturer gradeTN60
Material gradeP01; P10; P20
Maximum depth of cut0.1313
Multi use applicationBoring; Internal Facing
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel
RakePositive
Rake angle15
Relief angle5
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeG
Width0.3940in
Wiper edgeNo
