Kyocera

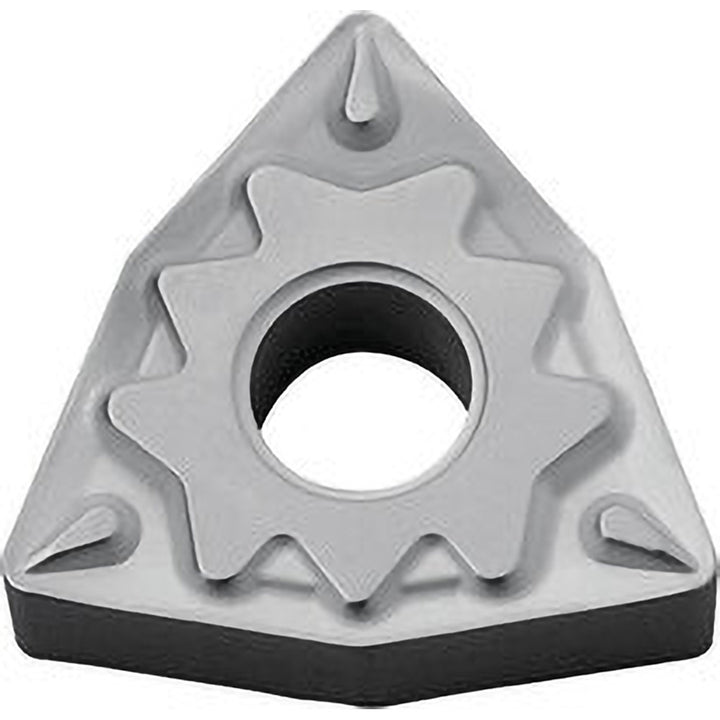

WNMG080408HQ Cermet Insert, Grade TN60, TiCN - Kyocera TSJ03852
MFR# TSJ03852ISO/ANSI# WNMG432HQTN60Series ISOI
$13.12List $18.87
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon 80
GradeTN60
MaterialCermet
CoatingTiCN
Description
The Kyocera TSJ03852 is a WNMG080408HQ cermet indexable insert, grade TN60, TiCN coated. Suited for steel.
Specifications
Chip breakerHQ
Clearance codeN
Coating finishTiCN
Coating processUncoated
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2032
Included angle80degree
Industry standard numberWNMG432HQTN60
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6840
Insert materialCermet
Insert shapeTrigon 80
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408HQ
Length range0.6500 - 0.7000
Manufacturers catalog numberTSJ03852
Manufacturer gradeTN60
Material gradeP01; P10; P20
Maximum depth of cut0.2280
Multi use applicationBoring; External Turning; Chamfering; Facing; Internal Facing
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Rake angle-15
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width0.6840in
Wiper edgeNo
