Kyocera

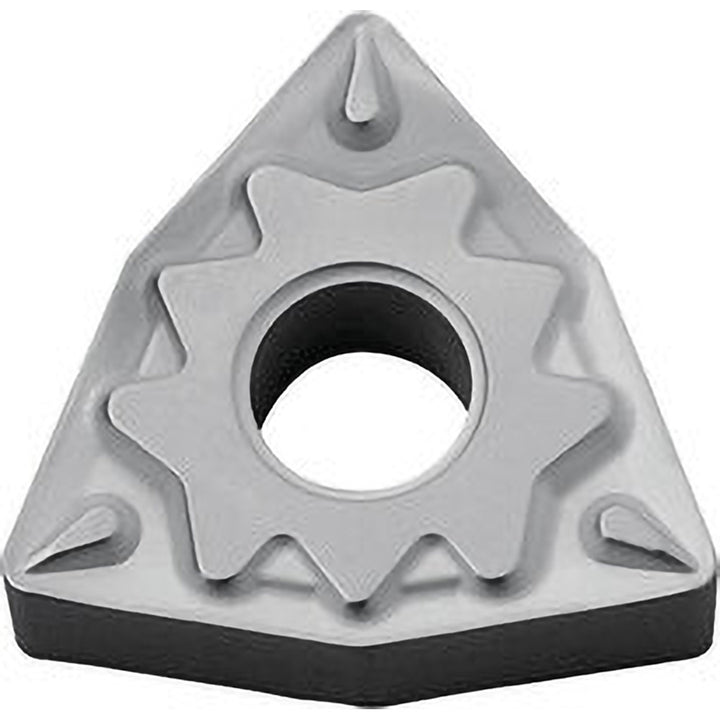

WNMG060404HQ Cermet Insert, Grade TN60, TiCN - Kyocera TSJ04090
MFR# TSJ04090ISO/ANSI# WNMG331HQTN60Series ISOI
$9.89List $14.22
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon 80
GradeTN60
MaterialCermet
CoatingTiCN
Description
The Kyocera TSJ04090 is a WNMG060404HQ cermet indexable insert, grade TN60, TiCN coated. Suited for steel.
Specifications
Chip breakerHQ
Clearance codeN
Coating finishTiCN
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1500
Included angle80degree
Industry standard numberWNMG331HQTN60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5120
Insert materialCermet
Insert shapeTrigon 80
Insert size code331
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG060404HQ
Length range0.5000 - 0.6000
Manufacturers catalog numberTSJ04090
Manufacturer gradeTN60
Material gradeP01; P10; P20
Maximum depth of cut0.1707
Multi use applicationBoring; External Turning; Chamfering; Facing; Internal Facing
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Rake angle-15
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width0.5120in
Wiper edgeNo
