Kyocera

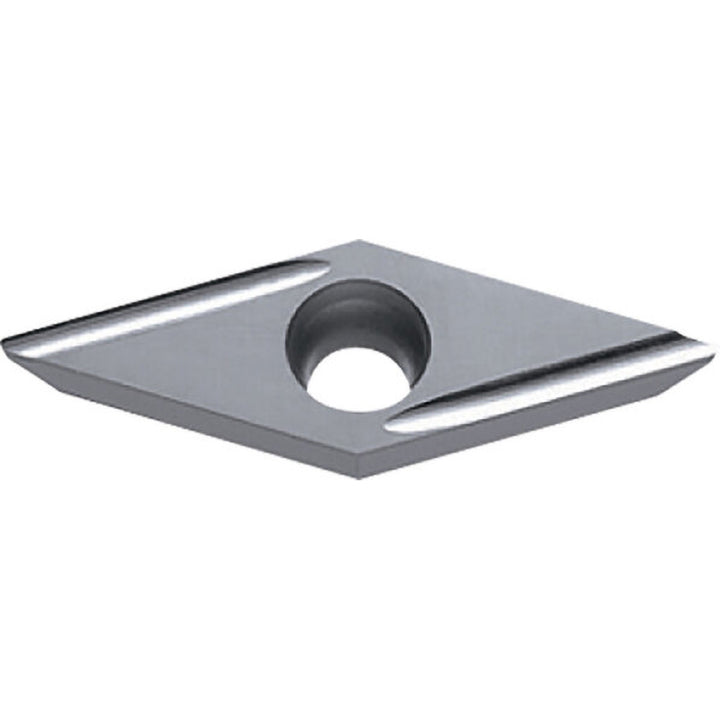

VPET080202FL-USF Cermet Insert, Grade TN60, TiCN - Kyocera TSJ08307
MFR# TSJ08307ISO/ANSI# VPET151505FLUSFTN60Series ISOI
$18.33List $26.37
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/16
ShapeDiamond 35
GradeTN60
MaterialCermet
CoatingTiCN
Description
The Kyocera TSJ08307 is a VPET080202FL-USF cermet indexable insert, grade TN60, TiCN coated. Suited for steel.
Specifications
Chip breakerUSF
Clearance codeP
Coating finishTiCN
Coating processUncoated
Corner radius in1/128
Cutting edge styleSharp
Full radiusNo
Hole diameter0.0906
Included angle35degree
Industry standard numberVPET151505FLUSFTN60
Inscribed circle in3/16
Insert handLeft Hand
Insert holding methodScrew
Insert length0.6304
Insert materialCermet
Insert shapeDiamond 35
Insert size code151505
Insert styleVPET
Insert thickness in3/32
Iso codeVPET080202FL-USF
Length range0.6000 - 0.6500
Manufacturers catalog numberTSJ08307
Manufacturer gradeTN60
Material gradeP01; P10; P20
Maximum depth of cut0.2101
Multi use applicationBack Boring; Copying; External Turning; Facing; Internal Facing; Profiling; Undercutting
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle30
Relief angle11
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeE
Width in3/16in
Wiper edgeNo
