TCMT16T304HQ Cermet Insert, Grade TN60, TiCN - Kyocera TSJ61354
MFR# TSJ61354ISO/ANSI# TCMT3251HQTN60Series ISOI
$12.86List $18.50
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeTN60
MaterialCermet
CoatingTiCN
Description

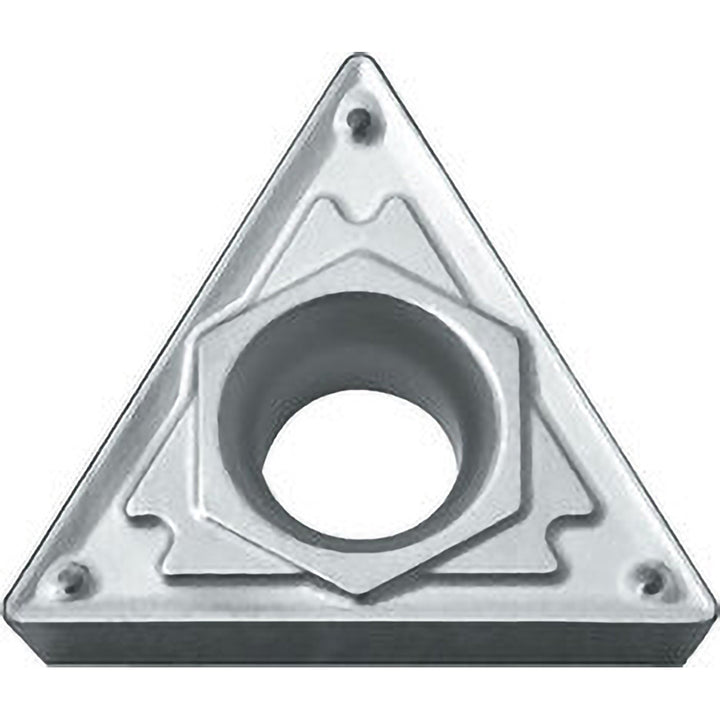

The Kyocera TSJ61354 is a TCMT16T304HQ cermet indexable insert, grade TN60, TiCN coated. Suited for steel.
Specifications
Chip breakerHQ
Clearance codeC
Coating finishTiCN
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1732
Included angle60degree
Industry standard numberTCMT3251HQTN60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6501
Insert materialCermet
Insert shapeTriangle
Insert size code3251
Insert styleTCMT
Insert thickness in5/32
Iso codeTCMT16T304HQ
Length range0.6500 - 0.7000
Manufacturers catalog numberTSJ61354
Manufacturer gradeTN60
Material gradeP01; P10; P20
Maximum depth of cut0.2167
Multi use applicationExternal Turning
Multi use toolNo
Number of cutting edges3
Primary workpiece materialSteel
RakePositive
Rake angle15
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width0.6501in
Wiper edgeNo
