Kyocera

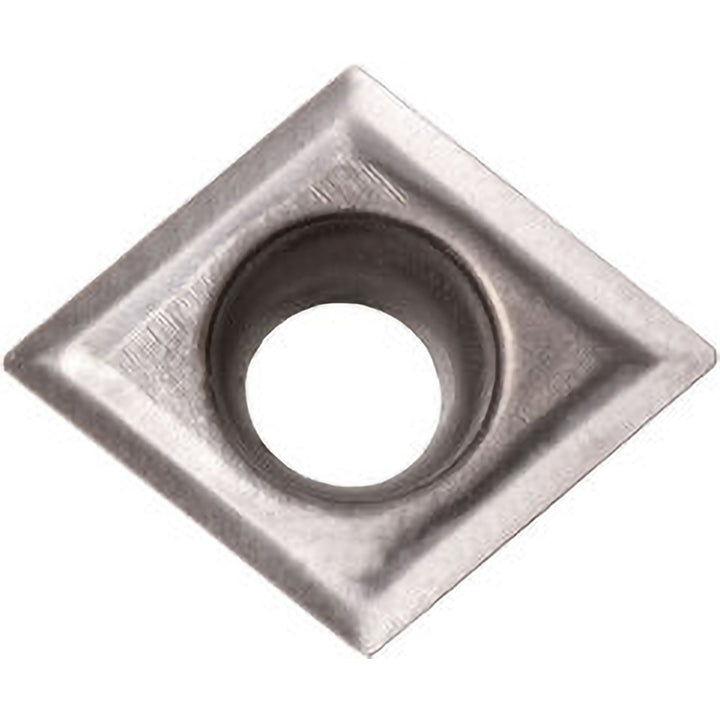

CPGT3252 Cermet Insert, Grade TN60, TiCN - Kyocera TSJ89056
MFR# TSJ89056ISO/ANSI# CPGT3252TN60Series ISOI
$14.09List $20.28
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradeTN60
MaterialCermet
CoatingTiCN
Description
The Kyocera TSJ89056 is a CPGT3252 cermet indexable insert, grade TN60, TiCN coated. Suited for steel.
Specifications
Clearance codeP
Coating finishTiCN
Coating processUncoated
Corner radius in1/32
Full radiusNo
Hole diameter0.1772
Included angle80degree
Industry standard numberCPGT3252TN60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length in3/8
Insert materialCermet
Insert shapeDiamond 80
Insert size code3252
Insert styleCPGT
Insert thickness in5/32
Iso codeCPGT3252
Length range0.3000 - 0.4000
Manufacturers catalog numberTSJ89056
Manufacturer gradeTN60
Material gradeP01; P10; P20
Maximum depth of cut0.1250
Multi use applicationBoring; Internal Facing
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle11
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeG
Width in3/8in
Wiper edgeNo
