Kyocera

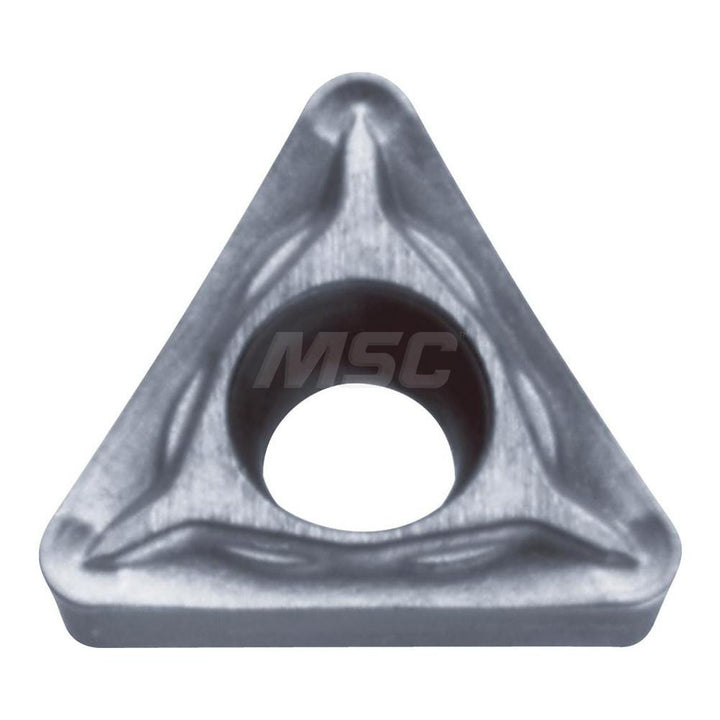

TCMT1.81.52HP Cermet Insert, Grade TN60 - Kyocera TSJ89149
MFR# TSJ89149ISO/ANSI# TCMT1.81.52HPSeries SD
$10.68List $15.36
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC7/32
GradeTN60
MaterialCermet
Description
The Kyocera TSJ89149 is a TCMT1.81.52HP cermet indexable insert, grade TN60. Suited for steel.
Specifications
Ansi codeTCMT1.81.52HP TN60
ChipbreakerHP
Corner radius in1/32
Cutting directionNeutral
Hole diameter0.0980
Included angle degree60
Inscribed circle in7/32
Insert materialCermet
Insert size18152
Insert size code18
Insert styleTCMT
Iso codeTCMT1.81.52HP
Length0.3540
Manufacturer gradeTN60
Material gradeC2; C3; C4; C6; C7; C8
Number of cutting edges3
Primary workpiece materialSteel
RakePositive
Relief angle7
ShapeTriangle
StandardsANSI; ISO
Thickness in3/32
