Kyocera

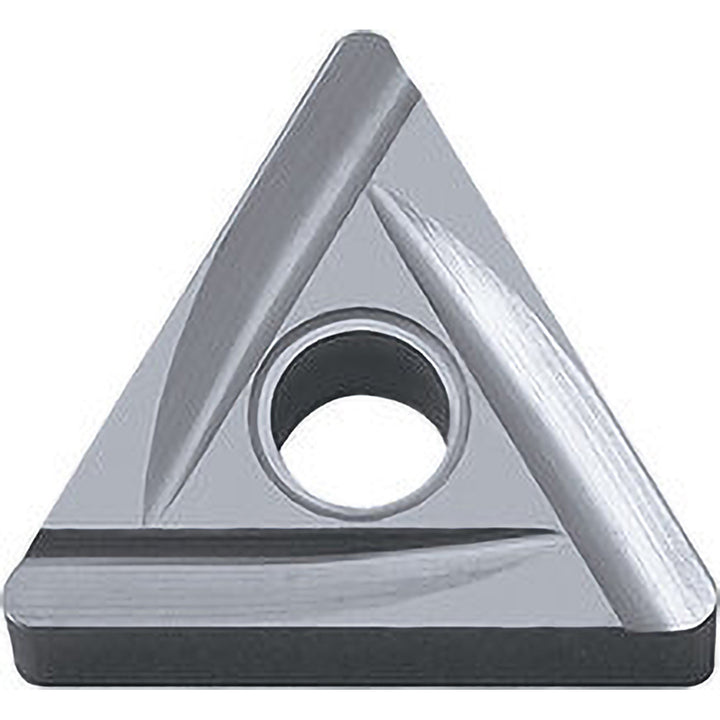

TNGG321RC Cermet Insert, Grade TN60, TiCN - Kyocera TSJ89162
MFR# TSJ89162ISO/ANSI# TNGG321RCTN60Series ISOI
$14.75List $21.22
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeTN60
MaterialCermet
CoatingTiCN
Description
The Kyocera TSJ89162 is a TNGG321RC cermet indexable insert, grade TN60, TiCN coated. Suited for steel.
Specifications
Chip breakerC
Clearance codeN
Coating finishTiCN
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1500
Included angle60degree
Industry standard numberTNGG321RCTN60
Inscribed circle in3/8
Insert handRight Hand
Insert holding methodClamp; Pin
Insert length0.6501
Insert materialCermet
Insert shapeTriangle
Insert size code321
Insert styleTNGG
Insert thickness in1/8
Iso codeTNGG321RC
Length range0.6500 - 0.7000
Manufacturers catalog numberTSJ89162
Manufacturer gradeTN60
Material gradeP01; P10; P20
Maximum depth of cut0.2167
Multi use applicationBoring; Chamfering; Copying; External Turning; Facing; Up Facing
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Rake angle-14
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeG
Width0.6501in
Wiper edgeNo
