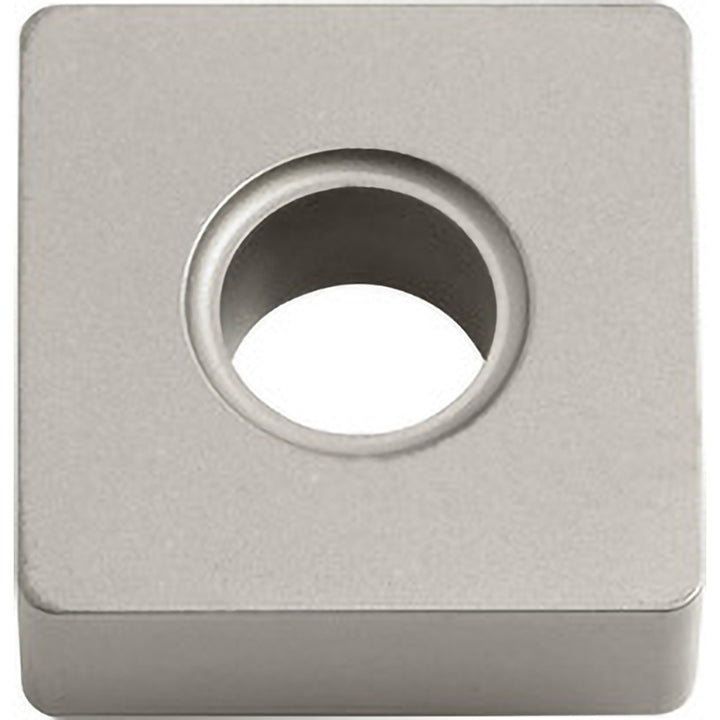

SNMA433 Cermet Insert, Grade TN60, TiCN - Kyocera TSJ89271

Kyocera

SNMA433 Cermet Insert, Grade TN60, TiCN - Kyocera TSJ89271

MFR# TSJ89271ISO/ANSI# SNMA433TN60Series ISOI

$11.11List $15.99 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeTN60
MaterialCermet
CoatingTiCN

Description

The Kyocera TSJ89271 is a SNMA433 cermet indexable insert, grade TN60, TiCN coated. Suited for steel.

Specifications

Clearance codeN
Coating finishTiCN
Coating processUncoated
Corner radius in3/64
Full radiusNo
Hole diameter0.2032
Included angle90degree
Industry standard numberSNMA433TN60
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCermet
Insert shapeSquare
Insert size code433
Insert styleSNMA
Insert thickness in3/16
Iso codeSNMA433
Length range0.5000 - 0.6000
Manufacturers catalog numberTSJ89271
Manufacturer gradeTN60
Material gradeP01; P10; P20
Maximum depth of cut0.1667
Multi use applicationBoring; Chamfering; External Turning; Facing
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
