Kyocera

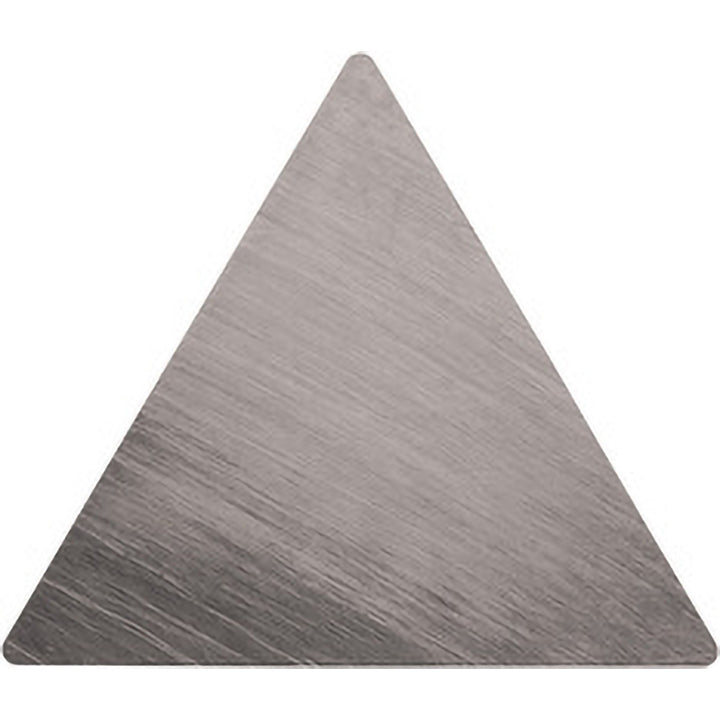

TPG322 Cermet Insert, Grade TN100M, TiCN - Kyocera TSP89034
MFR# TSP89034ISO/ANSI# TPG322Cat# TPG322TN100MSeries GPM
$13.16List $18.94
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeTN100M
MaterialCermet
CoatingTiCN
Description
The Kyocera TSP89034 is a TPG322 cermet indexable insert, grade TN100M, TiCN coated. Suited for steel.
Specifications
Clearance codeP
Coating finishTiCN
Coating processUncoated
Corner radius in1/32
Full radiusNo
Included angle60degree
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6501
Insert materialCermet
Insert shapeTriangle
Insert size code322
Insert styleTPG
Insert thickness in1/8
Iso codeTPG322
Length range0.6500 - 0.7000
Manufacturers catalog numberTPG322TN100M
Manufacturer gradeTN100M
Material gradeP20
Multi use applicationBoring; Chamfering; External Turning; Facing
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel
RakePositive
Relief angle11
StandardsANSI; ISO
Tolerance codeG
Width0.6501in
Wiper edgeNo
