Kyocera

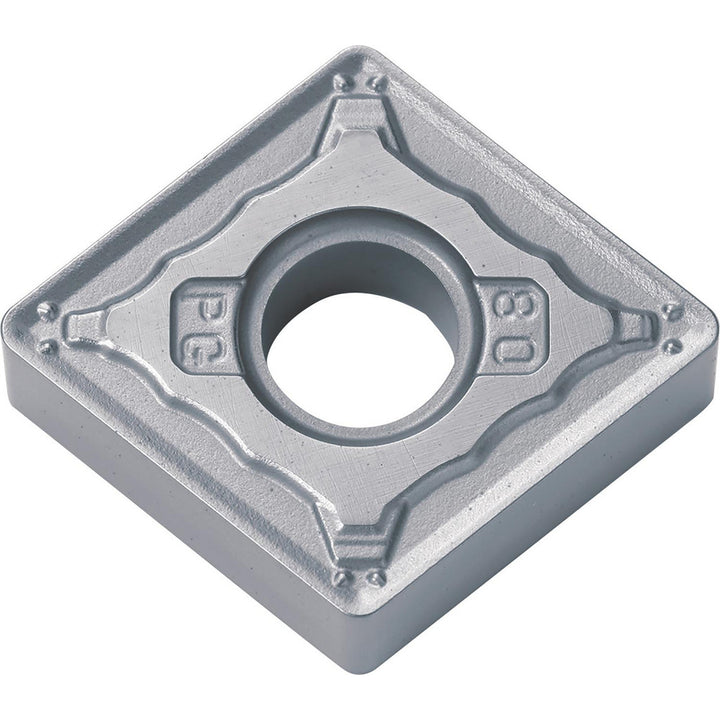

CNMG120404PG Cermet Insert, Grade TN620, TiCN - Kyocera TSR01801
MFR# TSR01801ISO/ANSI# CNMG431PGTN620Series ISOI
$12.01List $17.29
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeTN620
MaterialCermet
CoatingTiCN
Description
The Kyocera TSR01801 is a CNMG120404PG cermet indexable insert, grade TN620, TiCN coated. Suited for steel.
Specifications
Chip breakerPG
Clearance codeN
Coating finishTiCN
Coating processUncoated
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2032
Included angle80degree
Industry standard numberCNMG431PGTN620
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCermet
Insert shapeDiamond 80
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120404PG
Length range0.5000 - 0.6000
Manufacturers catalog numberTSR01801
Manufacturer gradeTN620
Material gradeP01; P10; P20
Maximum depth of cut0.1667
Multi use applicationBoring; External Turning; Chamfering; Facing; Internal Facing
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Rake angle-15
Relief angle0
Tolerance codeM
Width in1/2in
Wiper edgeNo
