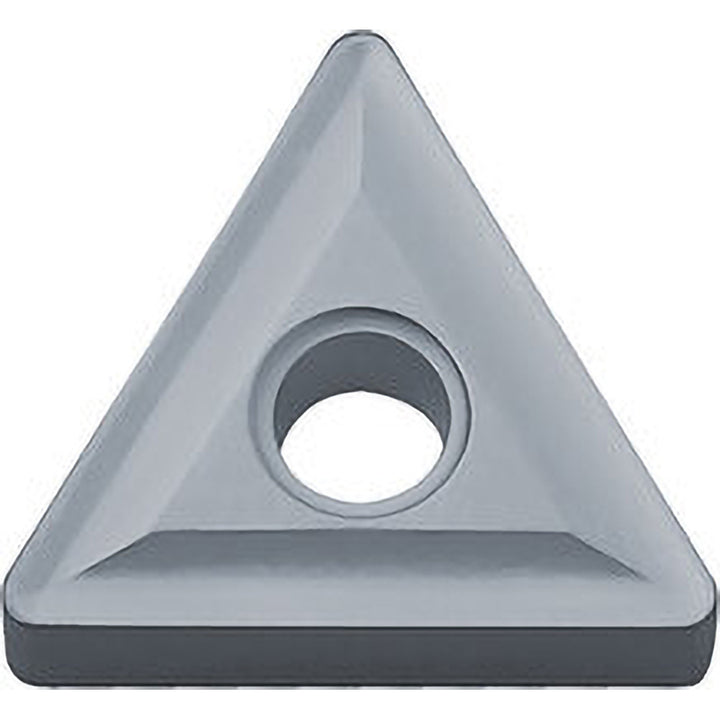

TNMG220408 Cermet Insert, Grade TN620, TiCN - Kyocera TSR06501

Kyocera

TNMG220408 Cermet Insert, Grade TN620, TiCN - Kyocera TSR06501

MFR# TSR06501ISO/ANSI# TNMG432TN620Series ISOI

$11.59List $16.68 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeTriangle
GradeTN620
MaterialCermet
CoatingTiCN

Description

The Kyocera TSR06501 is a TNMG220408 cermet indexable insert, grade TN620, TiCN coated. Suited for steel.

Specifications

Clearance codeN
Coating finishTiCN
Coating processUncoated
Corner radius in1/32
Full radiusNo
Hole diameter0.2032
Included angle60degree
Industry standard numberTNMG432TN620
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.8668
Insert materialCermet
Insert shapeTriangle
Insert size code432
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG220408
Length range0.7000 - 10.0000
Manufacturers catalog numberTSR06501
Manufacturer gradeTN620
Material gradeP01; P10; P20
Maximum depth of cut0.2889
Multi use applicationBoring; Chamfering; Copying; External Turning; Facing
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width0.8668in
Wiper edgeNo
