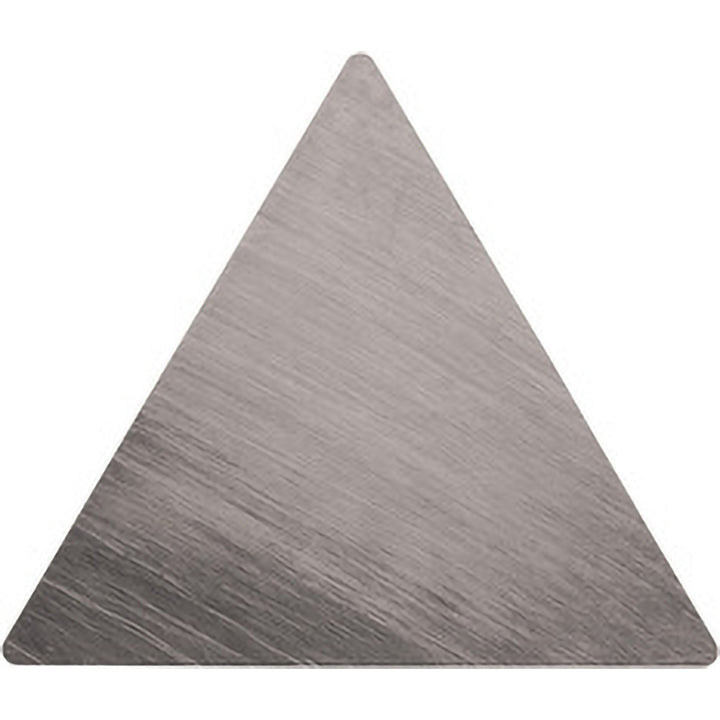

TPGN160308 Cermet Insert, Grade TN620, TiCN - Kyocera TSR06937

Kyocera

TPGN160308 Cermet Insert, Grade TN620, TiCN - Kyocera TSR06937

MFR# TSR06937ISO/ANSI# TPG322TN620Series ISOI

$12.78List $18.06 Save 29%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeTriangle
GradeTN620
MaterialCermet
CoatingTiCN

Description

The Kyocera TSR06937 is a TPGN160308 cermet indexable insert, grade TN620, TiCN coated. Suited for steel.

Specifications

Clearance codeP
Coating finishTiCN
Coating processUncoated
Corner radius in1/32
Full radiusNo
Included angle60degree
Industry standard numberTPG322TN620
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6501
Insert materialCermet
Insert shapeTriangle
Insert size code322
Insert styleTPG
Insert thickness in1/8
Iso codeTPGN160308
Length range0.6500 - 0.7000
Manufacturers catalog numberTSR06937
Manufacturer gradeTN620
Material gradeP01; P10; P20
Maximum depth of cut0.2167
Multi use applicationBoring; Chamfering; External Turning; Facing
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel
RakePositive
Relief angle11
StandardsANSI; ISO
Tolerance codeG
Width0.6501in
Wiper edgeNo
