Kyocera

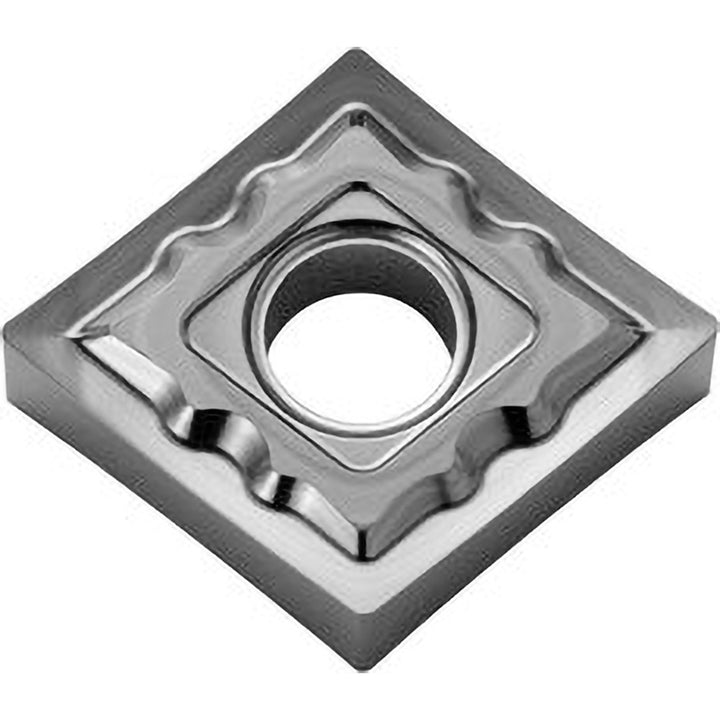

CNMG120404AH Carbide Insert, Grade KW10, WC-Co - Kyocera TWE04420
MFR# TWE04420ISO/ANSI# CNMG431AHKW10Series ISOI
$14.53List $20.91
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeKW10
MaterialCarbide
CoatingWC-Co
Description
The Kyocera TWE04420 is a CNMG120404AH carbide indexable insert, grade KW10, WC-Co coated. Suited for non-ferrous metal, superalloys.
Specifications
Chip breakerAH
Clearance codeN
Coating finishWC-Co
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2032
Included angle80
Industry standard numberCNMG431AHKW10
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1-1/64
Insert materialCarbide
Insert shapeDiamond 80
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120404AH
Length range0.5000 - 0.6000
Manufacturers catalog numberTWE04420
Manufacturer gradeKW10
Material gradeK10; K20
Maximum depth of cut0.0800
Multi use applicationBoring; External Turning; Chamfering; Facing; Internal Facing
Multi use toolYes
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal; Superalloys
RakeNegative
Rake angle-9
Relief angle0
Secondary workpiece materialCast Iron
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
