Kyocera

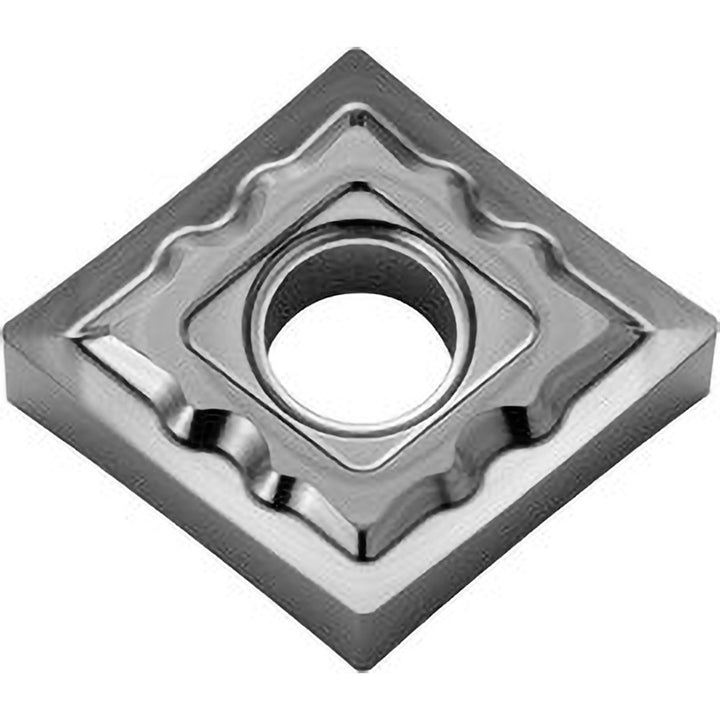

CNMG120408AH Carbide Insert, Grade KW10, WC-Co - Kyocera TWE04421
MFR# TWE04421ISO/ANSI# CNMG120408Series ISOI
$14.53List $20.91
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeKW10
MaterialCarbide
CoatingWC-Co
Description
The Kyocera TWE04421 is a CNMG120408AH carbide indexable insert, grade KW10, WC-Co coated. Suited for non-ferrous metal, superalloy.
Specifications
Ansi insert codeCNMG432
Ansi size code432
Chip breakerAH
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishWC-Co
Coating processUncoated
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsCast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance; Special, Super Alloys (S) - High Wear-Resistance
Hole diameter0.2032
Included angle80
Industry standard numberCNMG432AHKW10
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1-1/64
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408AH
Iso insert codeCNMG120408
Iso size code120408
Length range0.5000 - 0.6000
Manufacturers catalog numberTWE04421
Manufacturer gradeKW10
Material gradeK10; K20
Maximum depth of cut0.0800
Multi use applicationBoring; External Turning; Chamfering; Facing; Internal Facing
Multi use toolYes
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal; Superalloy
RakeNegative
Rake angle-9
Relief angle0
Secondary workpiece materialCast Iron
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
