Lapeer

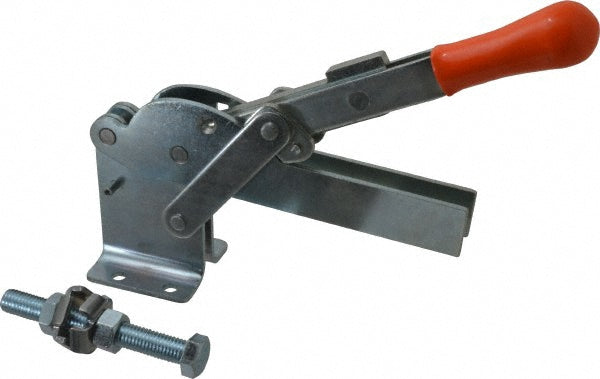

Toggle Clamp - Lapeer CAV-1200
MFR# CAV-1200
$85.08List $106.80
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Lapeer CAV-1200 is a carbon steel toggle clamp.
Specifications
Bar end typeOpen
Bar opening degrees110
Bar styleU-Bar
Bar thickness3.1300
Bar width in3/4
Base length (mm)76.20
Base styleFlanged
Base width in3.0000
Front of base to tip of toggle bar in6-3/16
Front of base to toggle tip6.18in
Handle colorOrange
Handle materialCarbon Steel
Handle movement degrees155
Handle orientationVertical
Handle styleStraight
Height under bar in3-1/8
Holding capacity kg544.31
Holding capacity lb1200.00
Includes(2) Flanged Washers; (2) Nuts; Spindle
Length distance between mount holes in1.5; 1-1/2
MaterialCarbon Steel
Mounting hole diameter0.3900
Number of mounting holes4
Overall height in14-5/8
Overall length in9-7/8
Spindle includedYes
Spindle length5-15/32
Spindle thread size5/8-18
Spindle travel in3.0625
Width distance between mount holes in2-1/4
