Lapeer

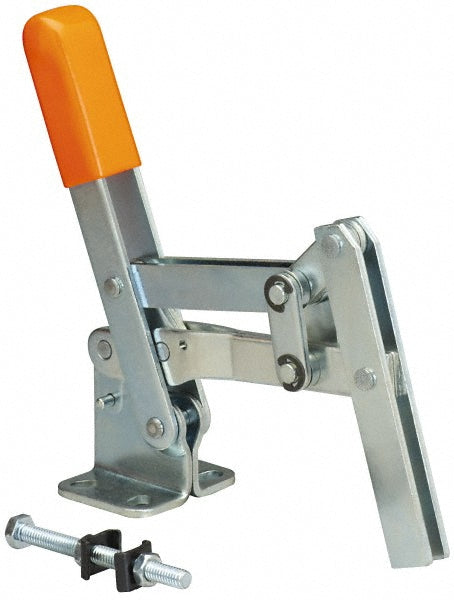

Toggle Clamp - Lapeer DTV-400
MFR# DTV-400
$74.98List $94.12
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Lapeer DTV-400 is a carbon steel toggle clamp.
Specifications
Bar end typeOpen
Bar opening degrees120
Bar styleU-Bar
Bar thickness2.0000
Bar width0.6100
Base length in2
Base styleFlanged
Base width in2.5000
Front of base to tip of toggle bar in3-15/32
Front of base to toggle tip3.46in
Handle colorOrange
Handle materialCarbon Steel
Handle movement degrees65
Handle orientationVertical
Handle styleStraight
Handle width0.9200
Height under bar2.0000
Holding capacity kg181.44
Holding capacity lb400.00
Includes(2) Flanged Washers; (2) Nuts; Spindle
Length distance between mount holes in1.125; 1-1/8
MaterialCarbon Steel
Mounting hole diameter0.3130
Number of mounting holes4
Overall height in8-5/8
Overall length6.2344
Spindle length8-5/8
Spindle length (mm)219.08
Spindle thread size5/16-18
Spindle travel in1.8750
Width distance between mount holes in1-3/8
