Lapeer

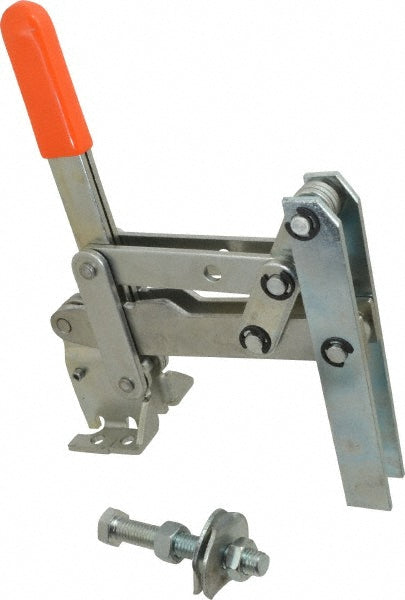

Toggle Clamp - Lapeer DTV-800
MFR# DTV-800
$119.39List $147.26
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Lapeer DTV-800 is a carbon steel toggle clamp.
Specifications
Bar end typeOpen
Bar opening degrees118
Bar styleU-Bar
Bar thickness2.1600
Bar width0.8600
Base length in2-3/16
Base styleFlanged
Base width in2.6875
Front of base to tip of toggle bar in4-5/16
Front of base to toggle tip4.31in
Handle colorOrange
Handle materialCarbon Steel
Handle movement degrees149
Handle orientationVertical
Handle styleStraight
Handle width0.5000
Height under bar in2-1/64
Holding capacity kg362.87
Holding capacity lb800.00
Includes(2) Flanged Washers; (2) Nuts; Spindle
Length distance between mount holes in0.875; 7/8
MaterialCarbon Steel
Mounting hole diameter0.3280
Number of mounting holes4
Overall height11.5313
Overall length in7-1/2
Spindle length11-17/32
Spindle length (mm)292.90
Spindle thread size1/2-13
Spindle travel in1.7500
Width distance between mount holes2.0000
