Lapeer

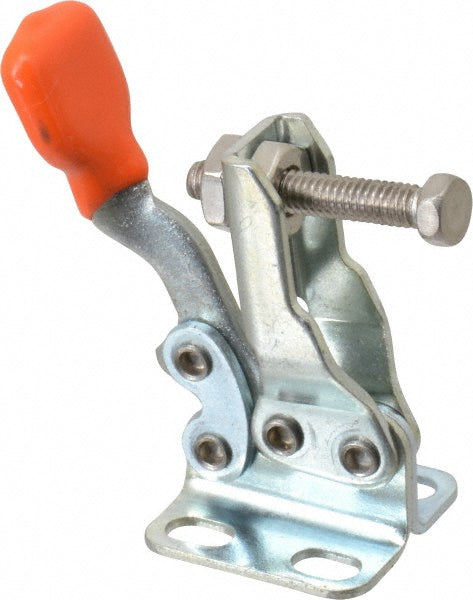

Toggle Clamp - Lapeer H-101
MFR# H-101
$8.81List $10.86
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Lapeer H-101 is a carbon steel toggle clamp.
Specifications
Bar end typeOpen
Bar opening degrees95
Bar styleU-Bar
Bar thickness0.7500
Bar width0.4700
Base length in15/16
Base styleFlanged
Base width in0.9375
Front of base to tip of toggle bar in7/8
Front of base to toggle tip0.87in
Handle colorOrange
Handle materialCarbon Steel
Handle movement degrees85
Handle orientationHorizontal
Handle styleStraight
Handle width0.5000
Height under bar in3/4
Holding capacity kg45.36
Holding capacity lb100.00
IncludesSpindle Assembly
Length distance between mount holes in0.5313; 17/32
MaterialCarbon Steel
Number of mounting holes4
Overall height in15/16
Overall length in2-7/8
Spindle includedYes
Spindle length1.0900
Spindle thread size8-32
Spindle travel in0.3125
Width distance between mount holes in5/8
