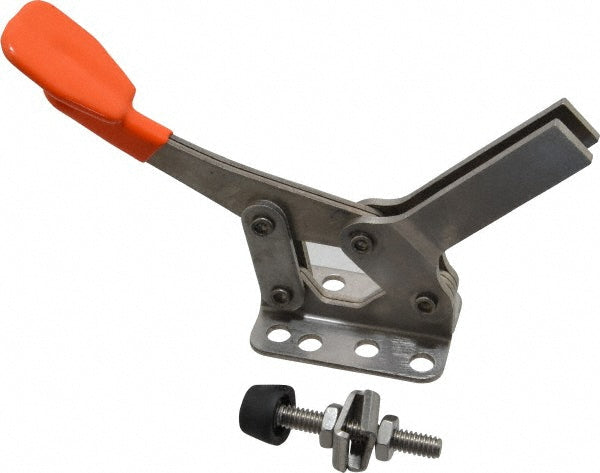

Toggle Clamp - Lapeer H-400(SS)
MFR# H-400(SS)
$45.08List $55.60
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Lapeer H-400(SS) is a stainless steel toggle clamp.
Specifications
Bar end typeOpen
Bar opening degrees95
Bar styleU-Bar
Bar thickness1.1300
Bar width in1/4
Base length in2-3/16
Base styleFlanged
Base width in1.5000
Front of base to tip of toggle bar in2-1/8
Front of base to toggle tip2.12in
Handle colorOrange
Handle materialStainless Steel
Handle movement degrees85
Handle orientationHorizontal
Handle styleStraight
Handle width1.0000
Height under bar in1-1/8
Holding capacity kg181.44
Holding capacity lb400.00
IncludesSpindle Assembly; Spindle Cap
Length distance between mount holes in1.0
MaterialStainless Steel
Mounting hole diameter0.2660
Number of mounting holes4
Overall height2.2813
Overall length in6-13/16
Spindle length1.8800
Spindle thread size1/4-20
Spindle travel in1.3125
Width distance between mount holes in7/8
