Lapeer

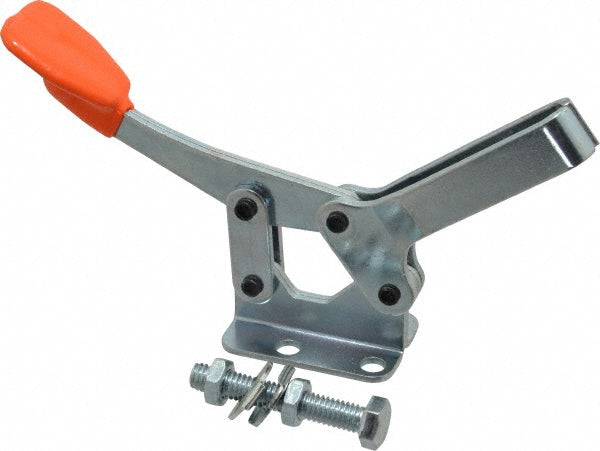

Toggle Clamp - Lapeer H-401
MFR# H-401
$13.92List $17.48
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Lapeer H-401 is a carbon steel toggle clamp.
Specifications
Bar end typeOpen
Bar opening degrees95
Bar styleU-Bar
Bar thickness1.3400
Bar width in1/4
Base length in2-3/64
Base styleFlanged
Base width in1.3750
Front of base to tip of toggle bar in2-33/64
Front of base to toggle tip2.51in
Handle colorOrange
Handle materialCarbon Steel
Handle movement degrees85
Handle orientationHorizontal
Handle styleStraight
Handle width1.0000
Height under bar1.3438
Holding capacity kg181.44
Holding capacity lb400.00
IncludesSpindle Assembly
Length distance between mount holes in1.0
MaterialCarbon Steel
Mounting hole diameter0.2660
Number of mounting holes4
Overall height in2-7/16
Overall length in7-1/16
Spindle length1.8800
Spindle thread size1/4-20
Spindle travel in1.6250
Width distance between mount holes in7/8
