Lapeer

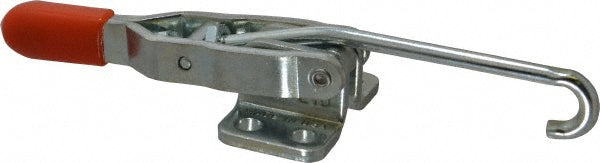

Toggle Clamp - Lapeer PCH-210
MFR# PCH-210
$13.70List $16.90
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Lapeer PCH-210 is a carbon steel toggle clamp.
Specifications
Bar styleJ-Hook
Bar thickness0.1850
Bar width0.3100
Base length1.00
Base length (mm)25.40
Base styleFlanged
Base to center of bar in9/16
Base width in1.6875
Body materialCarbon Steel
Clamping orientationHorizontal
Drawing movement in2-3/8
Handle colorOrange
Handle styleStraight
Length distance between mount holes in1/2
Load capacity200lb
Load capacity kg90.72
MaterialCarbon Steel
Mounting hole diameter in7/32
Overall height in1
Overall length in5-11/16
Width distance between mounting holes2.2188
Width distance between mount holes in2-7/32
