Lapeer

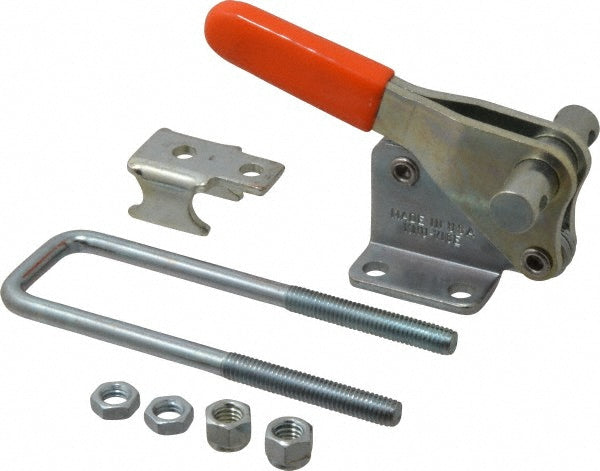

Toggle Clamp - Lapeer PCU-2010
MFR# PCU-2010
$27.59List $34.03
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Lapeer PCU-2010 is a carbon steel toggle clamp.
Specifications
Bar styleU-Hook
Bar thickness0.3400
Bar width1.4200
Base length in1-15/16
Base styleFlanged
Base to center of bar3.0000
Base width in2.1250
Body materialCarbon Steel
Clamping orientationVertical
Drawing movement in2-1/2
Handle colorOrange
Handle styleStraight
Hook adjustment0.75
IncludesLatch Plate
Length distance between mount holes in1-11/16
Load capacity2000lb
Load capacity kg907.18
MaterialCarbon Steel
Mounting hole diameter in11/32
Overall height in6-31/64
Overall length5.2100
Width distance between mounting holes1.2500
Width distance between mount holes in1-1/4
