Lapeer

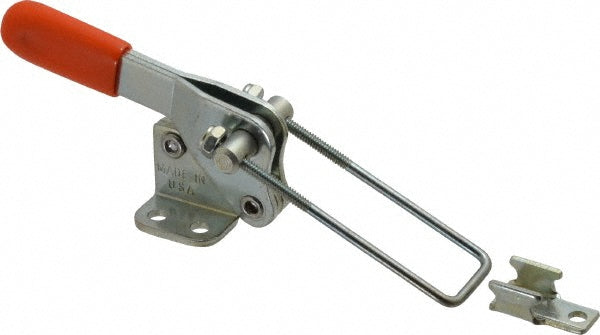

Toggle Clamp - Lapeer PCU-510
MFR# PCU-510
$14.43List $18.12
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Lapeer PCU-510 is a carbon steel toggle clamp.
Specifications
Bar styleU-Hook
Bar thickness0.1200
Bar width in13/16
Base length1.00
Base length (mm)25.40
Base styleFlanged
Base to center of bar1.3800
Base width in1.3750
Body materialCarbon Steel
Clamping orientationVertical
Drawing movement1.5000
Handle colorOrange
Handle styleStraight
Hook adjustment0.50
IncludesLatch Plate
Length distance between mount holes in7/8
Load capacity500lb
Load capacity kg226.80
MaterialCarbon Steel
Mounting hole diameter in13/64
Overall height in3-5/16
Overall length in3-1/8
Width distance between mounting holes0.5000
Width distance between mount holes in1/2
