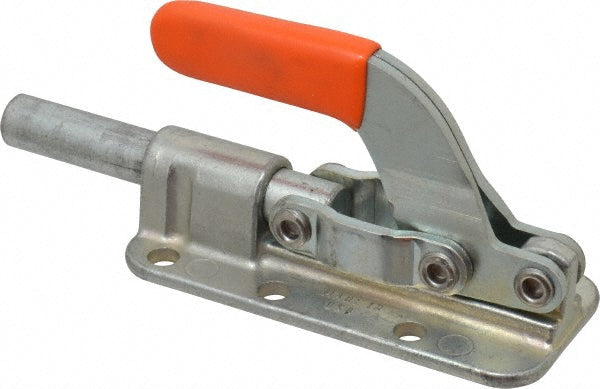

Toggle Clamp - Lapeer PHL-2501
MFR# PHL-2501
$44.70List $56.12
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Lapeer PHL-2501 is a carbon steel toggle clamp.
Specifications
Base length5.0000
Base styleFlanged
Base width in2.2500
Clamp materialCarbon Steel
Front of base to tip of toggle bar2.0000
Handle colorOrange
Handle styleStraight
Length distance between mount holes (mm)15.80; 34.90
Load capacity1133.98lb; 2500lb
MaterialCarbon Steel
Mounting hole diameter (mm)8.64
Number of mounting holes6
Overall height3.0000
Overall length7.0000
Plunger centerline height in13/16
Plunger diameter in5/8
Plunger shapeRound
Plunger thread size3/8-16
Plunger thread styleInternal
Plunger travel2.0000
Width distance between mount holes in1-5/8
