Lapeer

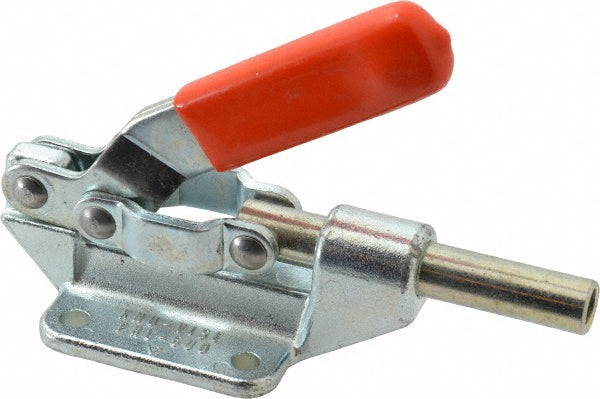

Toggle Clamp - Lapeer PHL-600
MFR# PHL-600
$23.94List $30.05
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Lapeer PHL-600 is a carbon steel toggle clamp.
Specifications
Base length2.0000
Base styleFlanged
Base width in1.8750
Clamp materialCarbon Steel
Front of base to tip of toggle bar2.1300
Handle colorOrange
Handle styleStraight
Length distance between mount holes in1-7/16
Load capacity272.16lb; 600lb
MaterialCarbon Steel
Mounting hole diameter (mm)5.59
Number of mounting holes4
Overall height in3-5/16
Overall length in4-3/4
Plunger centerline height1.0000
Plunger diameter in7/16
Plunger shapeRound
Plunger thread size5/16-18
Plunger thread styleInternal
Plunger travel in1-1/4
Width distance between mount holes in1-5/16
