Lapeer

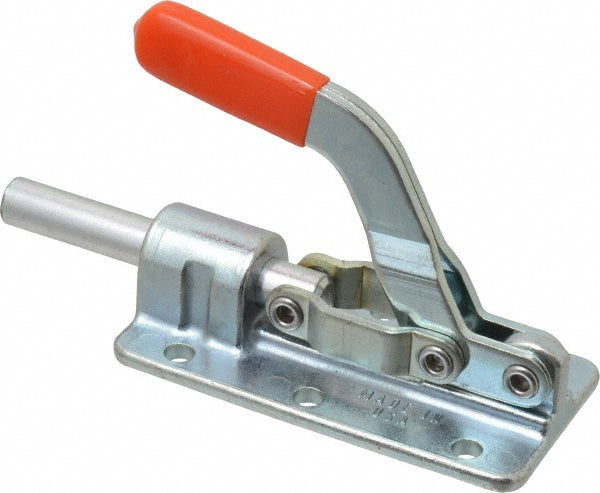

Toggle Clamp - Lapeer PHL-800
MFR# PHL-800
$36.72List $45.29
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Lapeer PHL-800 is a carbon steel toggle clamp.
Specifications
Base length in4-5/16
Base styleFlanged
Base width in2.1875
Clamp materialCarbon Steel
Front of base to tip of toggle bar1.7500
Handle colorOrange
Handle styleStraight
Length distance between mount holes (mm)34.90; 41.20
Load capacity362.87lb; 800lb
MaterialCarbon Steel
Mounting hole diameter (mm)7.11
Number of mounting holes6
Overall height in3-1/4
Overall length in6-1/16
Plunger centerline height in11/16
Plunger diameter in1/2
Plunger shapeRound
Plunger thread size5/16-18
Plunger thread styleInternal
Plunger travel in1-5/8
Width distance between mount holes in1-5/8
