Lapeer

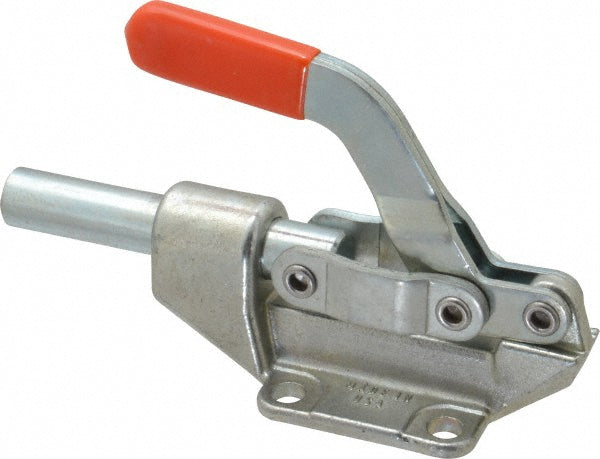

Toggle Clamp - Lapeer PHL-850
MFR# PHL-850
$39.70List $48.96
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Lapeer PHL-850 is a carbon steel toggle clamp.
Specifications
Base length in2-1/4
Base styleFlanged
Base width in2.2500
Clamp materialCarbon Steel
Front of base to tip of toggle bar2.9400
Handle colorOrange
Handle styleStraight
Length distance between mount holes in1-5/8
Load capacity385.55lb; 850lb
MaterialCarbon Steel
Mounting hole diameter (mm)8.38
Number of mounting holes4
Overall height in3-13/16
Overall length in6-1/8
Plunger centerline height in1-1/4
Plunger diameter in5/8
Plunger shapeRound
Plunger thread size3/8-16
Plunger thread styleInternal
Plunger travel in1-5/8
Width distance between mount holes in1-5/8
