Lapeer
Toggle Clamp - Lapeer T-220
MFR# T-220
$12.62List $15.85
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

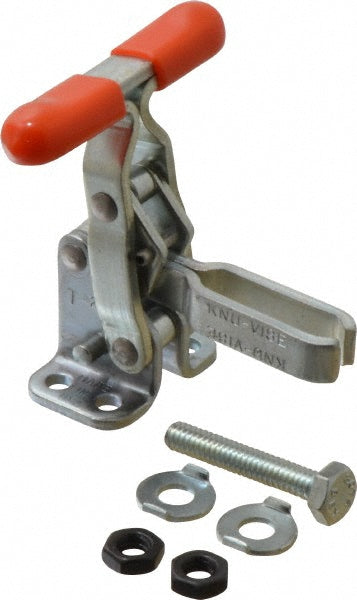

The Lapeer T-220 is a carbon steel toggle clamp.
Specifications
Bar end typeOpen
Bar opening degrees110
Bar styleU-Bar
Bar thickness0.9600
Bar width0.2600
Base length in1
Base styleFlanged
Base width in1.5600
Front of base to tip of toggle bar1.6400
Front of base to toggle tip1.64in
Handle colorOrange
Handle materialCarbon Steel
Handle movement degrees64
Handle orientationVertical
Handle styleT-Handle
Handle width2.4000
Height under bar0.9630
Holding capacity lb200.00
Includes(2) Flanged Washers; (2) Nuts; Spindle
Length distance between mount holes in1.06
MaterialCarbon Steel
Mounting hole diameter0.2180
Number of mounting holes4
Overall height2.8100
Overall length2.6400
Spindle length1-5/8
Spindle thread size1/4-20
Spindle travel in1.0000
Width distance between mount holes0.5000
