Lapeer

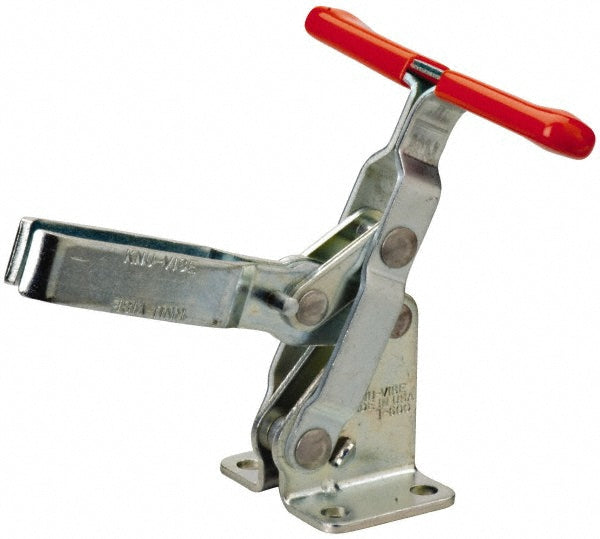

Toggle Clamp - Lapeer T-600
MFR# T-600
$26.35List $33.08
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Lapeer T-600 is a carbon steel toggle clamp.
Specifications
Bar end typeOpen
Bar opening degrees106
Bar styleU-Bar
Bar thickness1.6900
Bar width0.4100
Base styleFlanged
Base width in2.5000
Front of base to tip of toggle bar3.6600
Front of base to toggle tip3.66in
Handle colorOrange
Handle materialCarbon Steel
Handle movement degrees57
Handle orientationVertical
Handle styleT-Handle
Handle width5.0000
Height under bar1.6900
Holding capacity lb600.00
Includes(2) Flanged Washers
Length distance between mount holes in1.25
MaterialCarbon Steel
Mounting hole diameter0.3300
Number of mounting holes4
Overall height5.3800
Overall length5.5300
Spindle length3-1/2
Spindle thread size3/8-16
Spindle travel in2.5600
Width distance between mount holes1.7500
